Description
Humminbird XTM-9-HW-MDI-T
Model: 710281-1
- This accessory is compatible with the following Humminbird products: HELIX 8 CHIRP G3N Series, MEGA DI and MEGA SI+, HELIX 9 CHIRP G3N Series MEGA DI and MEGA SI+, HELIX 10 CHIRP G3N Series MEGA DI and MEGA SI+, HELIX 12 CHIRP G3N Series MEGA DI and MEGA SI+.
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)

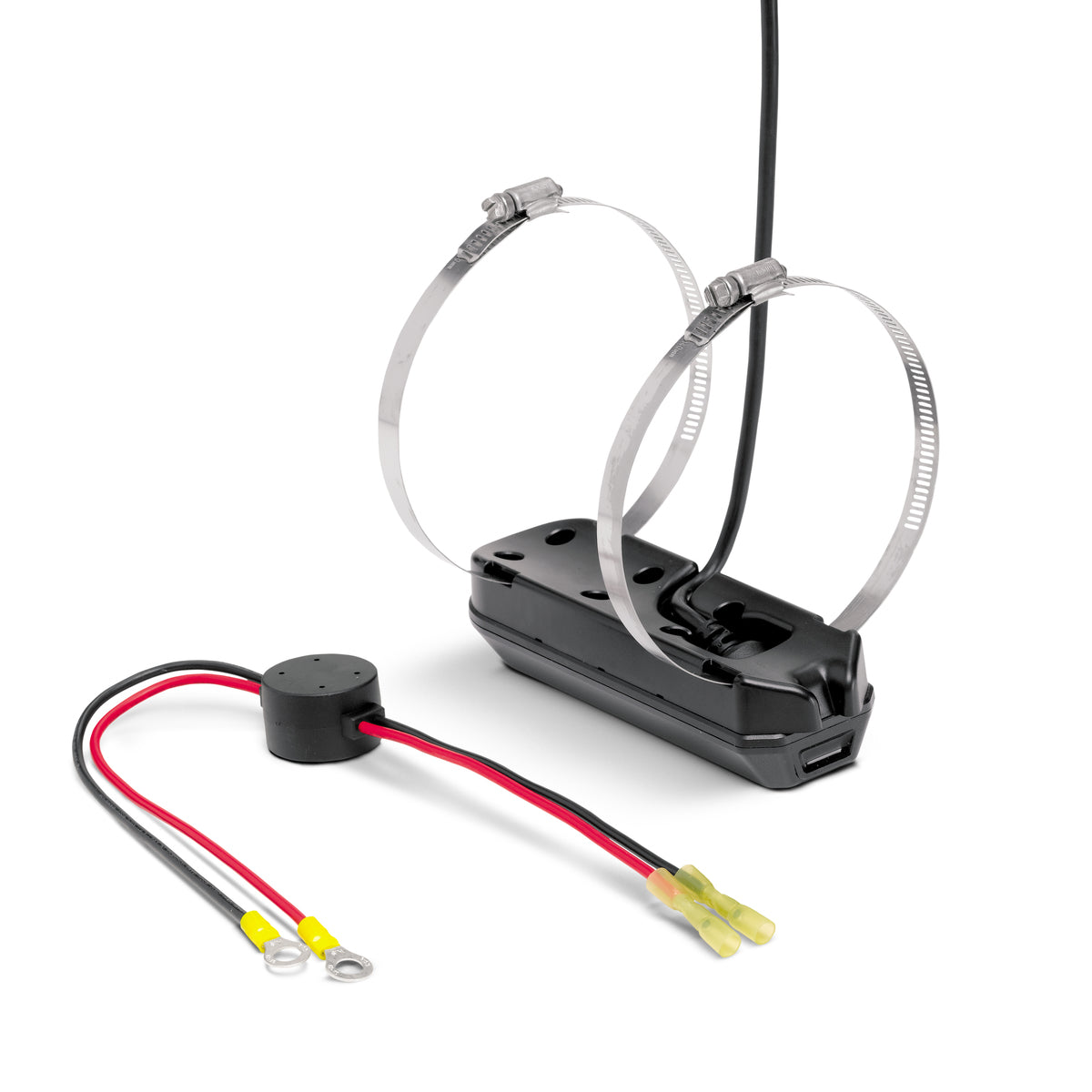

MEGA Down Imaging+ Trolling Motor Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, trolling motor mounting hardware and 20’ cable.
Specifications
| Mount Type |
Trolling Motor |
| Sonar Type |
MEGA Imaging, Dual Spectrum |
| Current Models |
HELIX 8, HELIX 9, HELIX 10, HELIX 12 |
