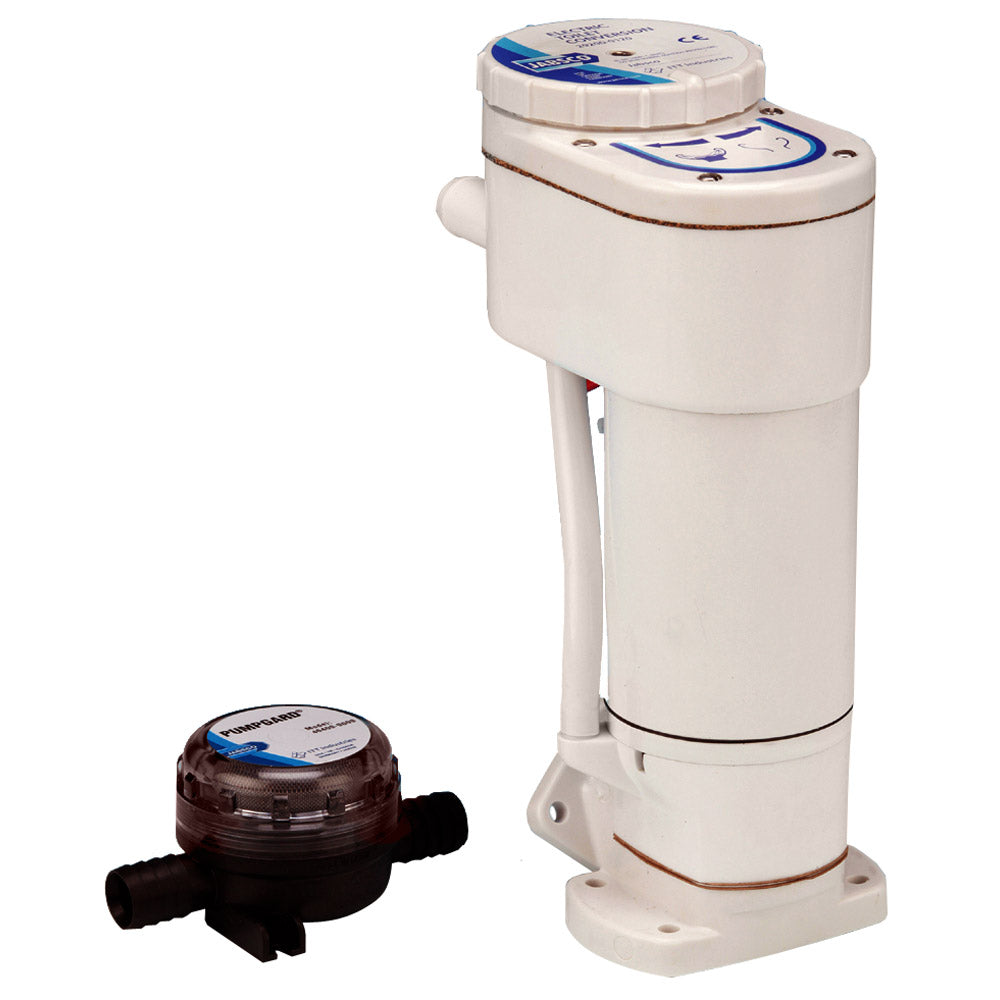

Jabsco 12V Electric Conversion Kit [29200-0120]

Description

Electric Conversions

Features:

  • Directly replaces manual pump assembly
  • Easy to Install
  • Simple to operate
  • Dual action control allows water level to be varied
  • Fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Adaptors available to fit many other makes
  • Suitable for use in above or below waterline installations
  • Built in macerator
  • Meets EN50081-2 for Electro Magnetic Compatibility (EMC)
  • Meets ISO 8846 MARINE and USCG 183.410 for Ignition protection
  • Self priming up to 0.6m(2ft)
  • Waste pump discharges over an anti siphon loop up to 1.8m(6ft) and out of a through hull fitting down to 0.9m(3ft) below the surface
  • Typical power consumption is less than 1.0 amp hour(12 Volt)

Specifications:

  • Type: Misc
  • Box Dimensions: 7"H x 10"W x 13"L WT: 7.75 lbs
  • UPC: 671880520935

Owner's Manual (pdf)

Jabsco 12V Electric Conversion Kit [29200-0120]

Product form

$595.99

    Description

    Electric Conversions

    Features:

    • Directly replaces manual pump assembly
    • Easy to Install
    • Simple to operate
    • Dual action control allows water level to be varied
    • Fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Adaptors available to fit many other makes
    • Suitable for use in above or below waterline installations
    • Built in macerator
    • Meets EN50081-2 for Electro Magnetic Compatibility (EMC)
    • Meets ISO 8846 MARINE and USCG 183.410 for Ignition protection
    • Self priming up to 0.6m(2ft)
    • Waste pump discharges over an anti siphon loop up to 1.8m(6ft) and out of a through hull fitting down to 0.9m(3ft) below the surface
    • Typical power consumption is less than 1.0 amp hour(12 Volt)

    Specifications:

    • Type: Misc
    • Box Dimensions: 7"H x 10"W x 13"L WT: 7.75 lbs
    • UPC: 671880520935

    Owner's Manual (pdf)
