Description

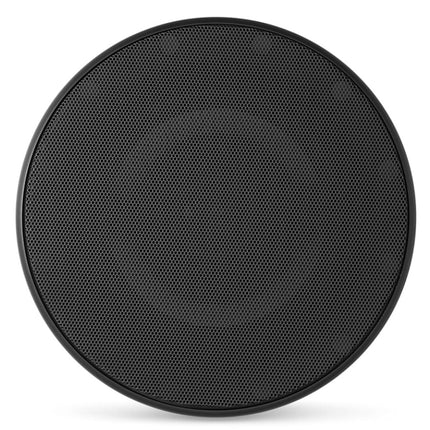

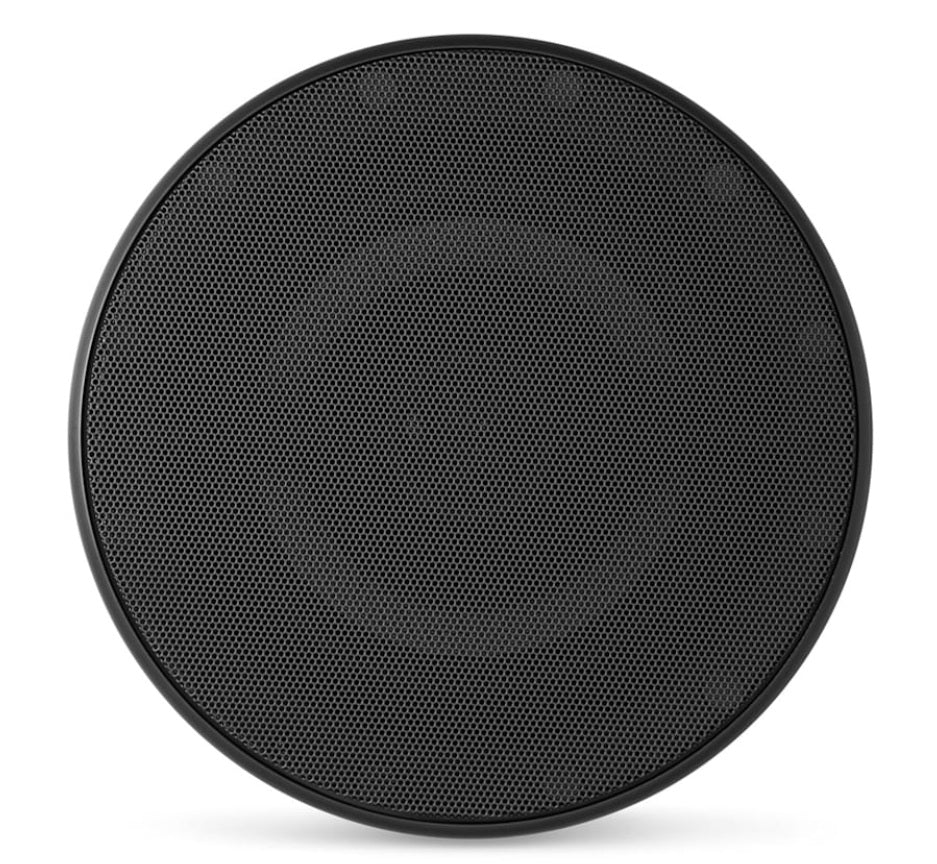

JL Audio M6 7.7in Coaxial Speakers Black LUXe Grille Single Speaker
M6-770X-L-SbSb-Single
Model: 010-03866-00
- DMA-OPTIMIZED WOOFERS: Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
- MATCHING SILK DOME TWEETERS: Precisely tuned tweeters, uniquely sized for each woofer's diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.
- ADVANCED FILTER NETWORKS: Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.
- POWERFULLY EFFICIENT: M6 marine speakers are designed to benefit from operation with quality amplification.
- REAL MARINE DUTY: For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.
Featuring a long-excursion woofer design paired with a suspended tweeter, M6 marine speakers are designed to yield unmatched frequency response and linear performance at all listening levels.
SpecificationsSize| 7.7 in |
| Color |
Black |
| Speaker type |
Coaxial |
| Continuous power handling (RMS) |
100 W |
| Sensitivity (SPL @ 1 W/1 m) |
91.0 dB |
| Frequency response (+/- 3 dB) |
45 Hz-25 kHz |
| Nominal impedance |
4 Ohm |
| Recommended amplifier power (RMS) |
40-200 W/Channel |
| Cone material |
Injection-molded, mica-filled polypropylene |
| Tweeter type |
Silk Dome |
| Tweeter size |
1 (25 mm) |
| Warranty |
3 years |
| Speaker connections |
Spade Connectors |
| Mounting Dimensions |
| Mounting depth clearance |
4.26 in (108 mm) |
| Frontal grille protrusion |
0.38 in (10 mm) |
| Mounting hole |
7.50 in (191 mm) |
| Bolt hole circle |
8.18 in (208 mm) |
What's in the Box:
- Marine coaxial loudspeaker
- Six stainless steel mounting screws
- Six stainless steel screws washers
- Grille removal tool
- Mounting template
"
