Description

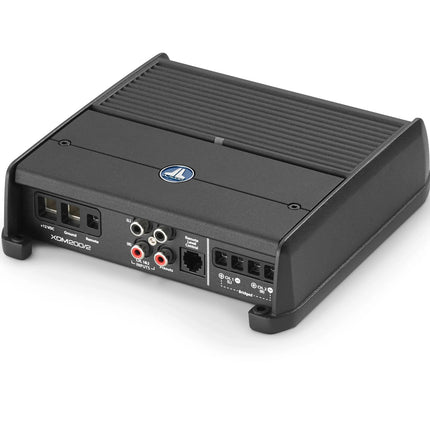

Jl Audio XDM200/2 2 Ch. Class D, Full-Range Car/Marine Amplifier, 200 W
Model: XDM200/2
The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM200/2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or cockpit.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Specifications
| Rated Continuous (RMS) Power @ 14.4 V |
| @ 4 Ohms |
75 W RMS x 2 |
| @ 2 Ohms |
100 W RMS x 2 |
| Bridged @ 4 Ohms |
200 W RMS x 1 |
| Rated Continuous (RMS) Power @ 12.5 V |
| @ 4 Ohms |
60 W RMS x 2 |
| @ 2 Ohms |
90 W RMS x 2 |
| Bridged @ 4 Ohms |
180 W RMS x 1 |
| General Specifications |
| Frequency Response |
12 Hz - 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power |
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W |
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ohms |
>150 / 50 Hz |
| Damping Factor @ 2 Ohms |
>75 / 50 Hz |
| THD+N @ Rated Power |
<1% @ 2 Ohm per Ch. |
| Input Voltage Range @ RCA Inputs |
200 mV - 4 V RMS |
| Min.Copper Power / Ground Wire Gauge |
8 AWG wire |
| Fuse Rating |
20 A (AFS, AGU or MaxiFuse™) |
| Signal Processing |
| Filter Mode(s) |
Low-Pass or High-Pass |
| Filter Slope(s) |
12 dB/octave |
| Filter Frequency Range |
50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer |
Yes |
| Filter Defeat Function |
Yes |
| Remote Level Control |
Optional HD-RLC or MHD-RLC (water-resistant) |
| Security Cover for Controls |
Yes |
| Pass-Through Preamp Output |
Buffered |
What's in the Box:
- XDM200/2 Amp
- Wrench
- Manual
