Description
Function:
USA Programmed Unit with US and South American GPS Antenna.
Licenced Asian Reproduction of discontinued GP32.
GPS/SBAS Marine Navigator 4.5 inch LCD Display GPS Navigation Locator Brand New High Quality Marine Parts

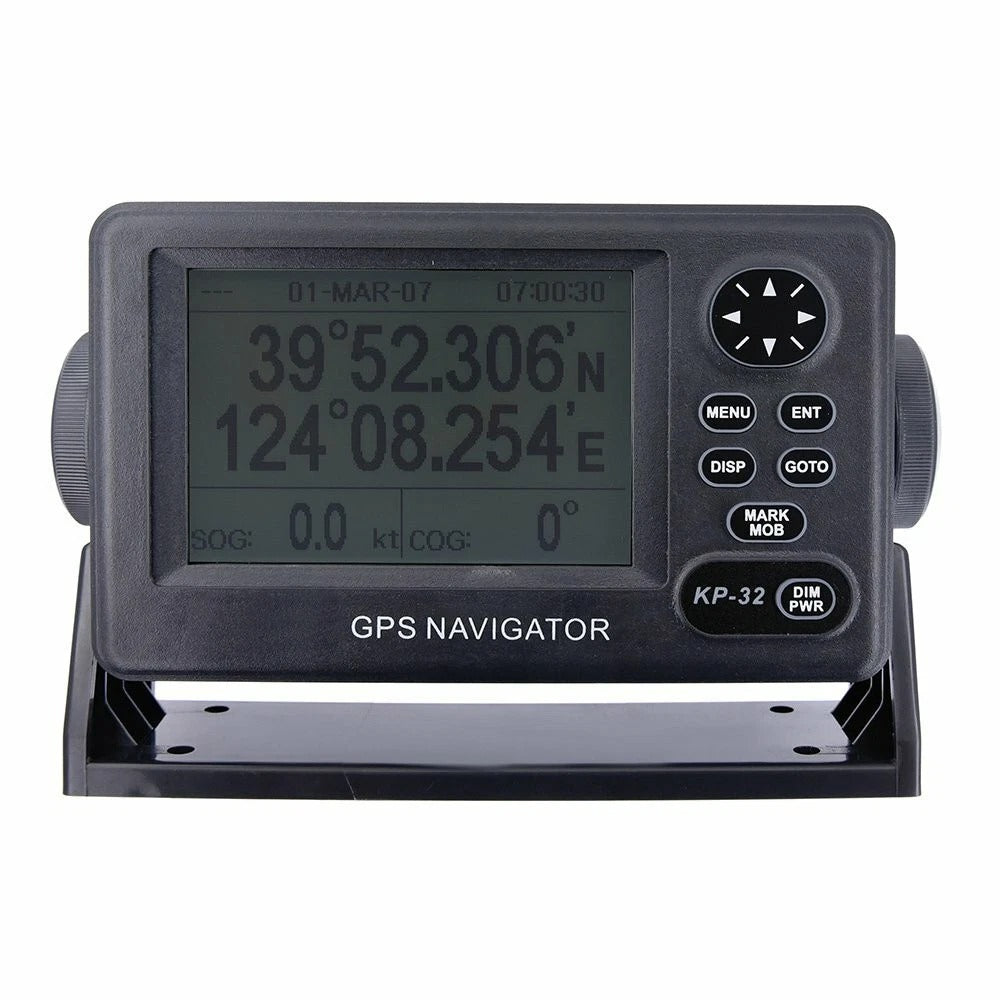

The KP-32 is an advanced GPS navigator with SBAS receiver designed for ships, fishing boats and leisure yachts. It is fully functional, fast
positioning, and uses SBAS orientation. It stores up to 2,500 waypoints and is very convenient to use.
Features:
1. Built-in SBAS receiver to improve accuracy.
2. 4.5 inches silver bright LCD display.
3. Multiple display modes to suit a variety of navigational requirements.
4. Up to 999 waypoints, 50 route memories and 2,500 track points.
5. One-touch waypoint entry.
6. Customizable navigation data screens.
7. Track back feature stores waypoints at users defined intervals for early trace-back cruise.
8. Waypoint & Route upload and download through RS-232C interface.
9. Alarm arrival, anchor zone, XTE, speed, time, odometer, dangerous route alarm.
Item Type: Marine Navigator
Receiver GPS: 12 channels, C/A code, all-in-view. SBAS receiver.
Acceptance Frequency: L1 (1575.42 Mhz)
Positioning Time: Average 15 seconds (hot start)
Positioning Rate: 999 knots
Chart Basis: WGS-84
Accuracy:
GPS 15m (95%)
SBAS 3m (95%)
Display: 4.5 diagonal 95(W) x 63(H) mm LCD, 240 x 160 pixels
Display Mode: Chart, high speed, yaw, speedometer, satellite data and 2 pages of custom display
Memory Space: 2,500 tracks, 999 waypoints, 50 route memories, 30 route points per day
Languages: English, Spanish, French, Italian, Portuguese
Interface:
Output (NMEA 0183 ver 2.0)
AAM, APB, BOD, BWC, GGA, GLL, RMB, RMC, VTG, XTE, ZDA
Ambient Temperature:
Display: -15°C to +55°C
Antenna Unit: -25°C to +70°C
Waterproof: Display: IPX5 Antenna: IPX6 Power Supply: 12-24 VDC, 240-120 mA

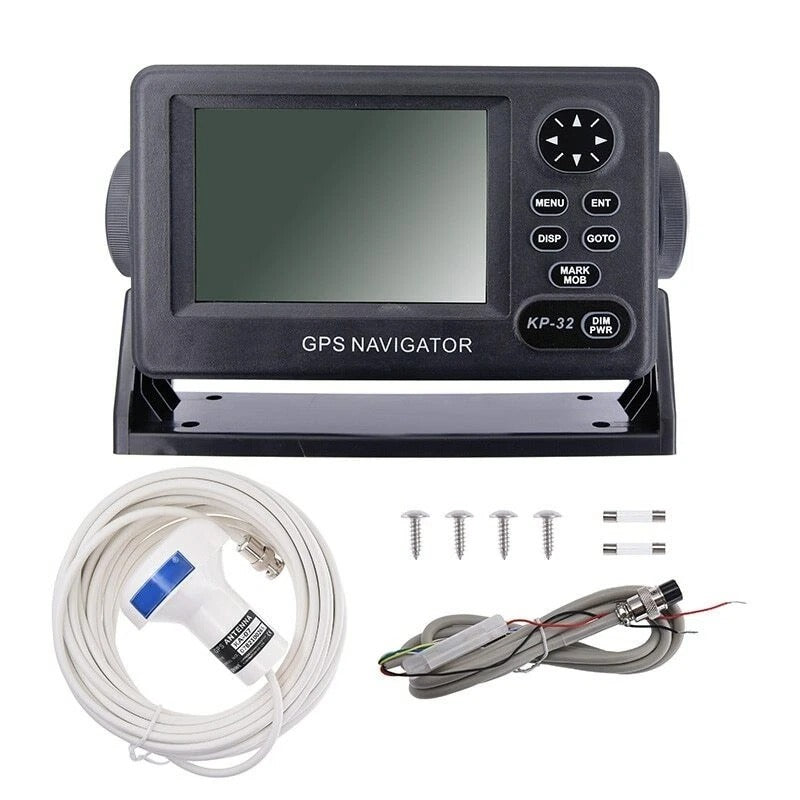

Package List:
1 x GPS Navigator

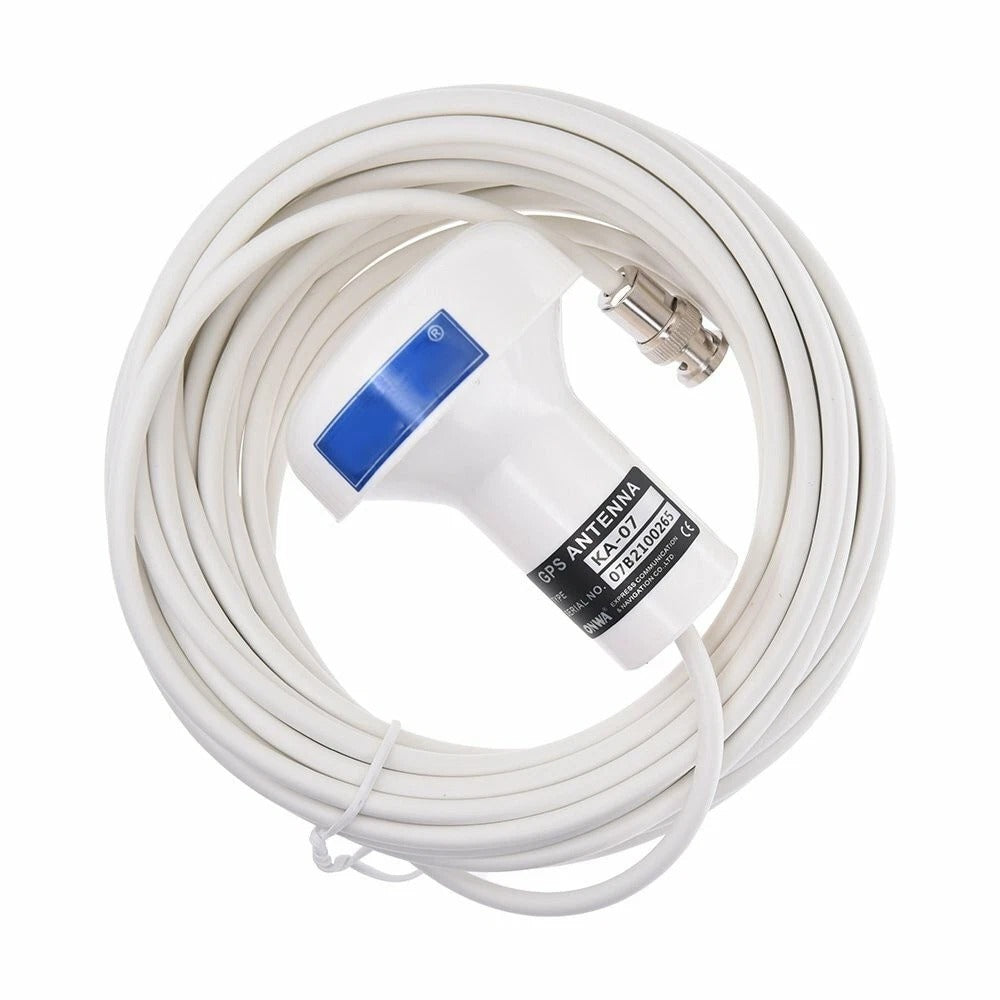

1 x GPS Antenna
1 x Six Foot Cable
1 x Navigator Protective Case
1 x Screw Kit
