Description

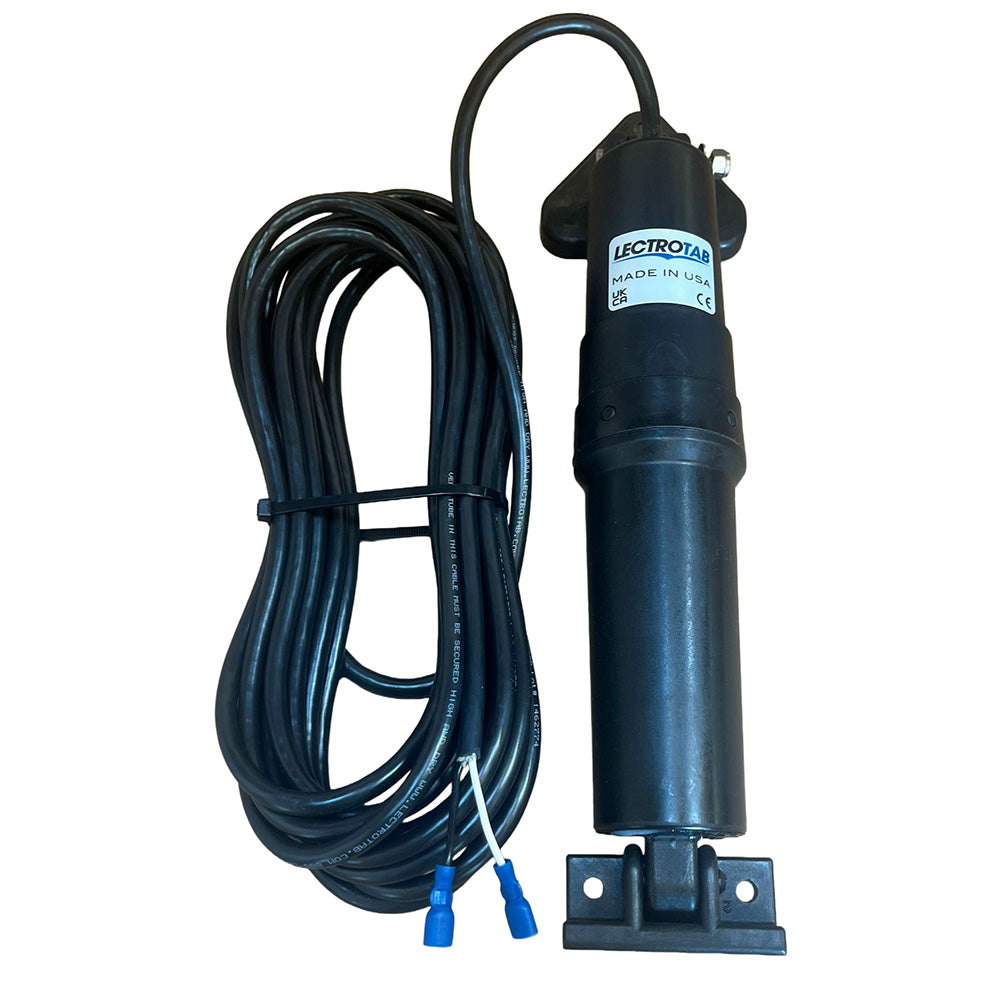

12V Actuator with 23' Cable for Tidewater
Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy-duty trim tab actuator. The heavy-duty actuator features a reinforced upper mounting boss and a 12-gauge stainless steel upper bracket. Lectrotab heavy-duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures precise tab positioning, delivers maximum lift force, and is fully self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time.
Features:
- Stainless Steel upper mounting bracket
- Reinforced actuator upper mounting boss
- The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
- Utilizes an internal pressure equalization system
- Upgrades to the most popular hydraulic and electromechanical systems
- Internal brake system prevents unwanted tab movement when underway or backing down
- Quiet operation
- All actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure that cannot corrode and will not deteriorate in the sun or underwater
![Lectrotab 12V Actuator w/23' Cable f/Tidewater [A-BK-57]](http://rebellionmarine.net/cdn/shop/files/113855XL.jpg?v=1777258944)
