Description

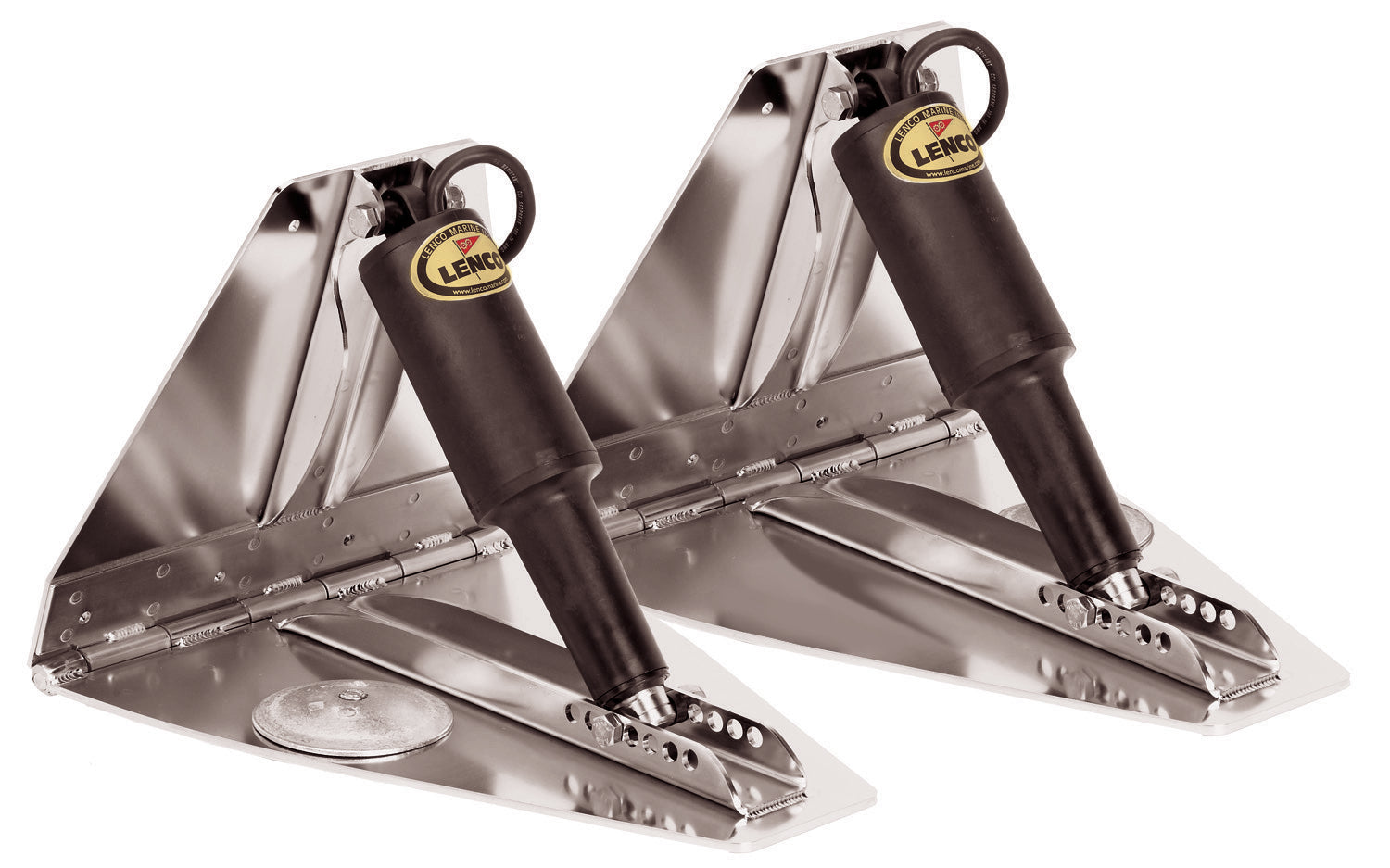

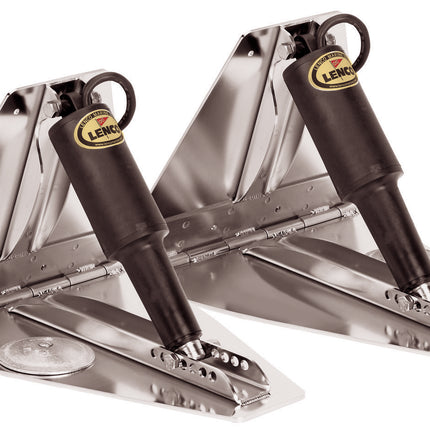

Lenco 14" X 12" High Perfomance Trim Tab Kit - Requires Switch
Model: 15048-101
This powerful, unique series is designed for multiple engine applications with limited transom space. The contoured blade design allows extra space for engines to turn while reducing cavitation to the props. Boat lengths 16’ (4.9 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 7 gauge (4.6 mm) laser cut 304 stainless steel with heavy duty hinge with 3/8" (9.5 mm) diameter hinge pin. Full transom back plate with mechanical strain-relief cable seals, welded on stainless steel upper & adjustable lower actuator mounting brackets, 3/8" (9.5 mm) stainless steel mounting bolts. 3.75" (9.5 cm) sacrificial anodes installed.
Note: Boat-mounting hardware to be supplied by the customer
Note: Actuator extension harnesses not in kits, must be purchased separately (2 required)
Specifications
| Plane Size L x W |
14" x 12" |
| Boat length |
16' - 2' |
| Min Transom Height |
10.5" |
| Voltage |
12vDC |
What's in the Box:
- (2) 7-gauge stainless steel Electro-Polished blades
- (2) 15056-001 XD Extreme Duty actuators with 6' (1.8 m) leads & Deutsch connectors
- Lenco owner's/installation manual
