Description

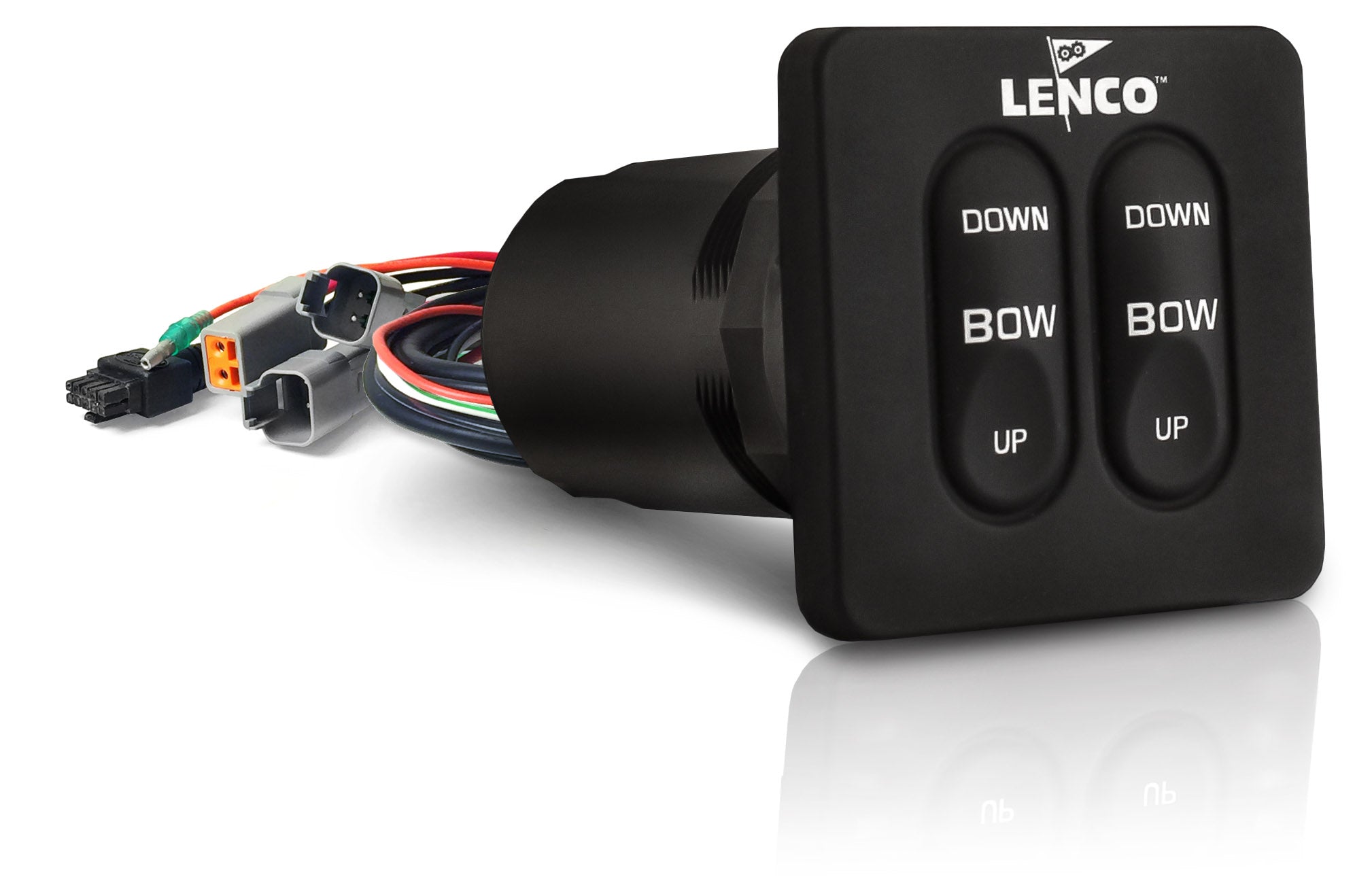

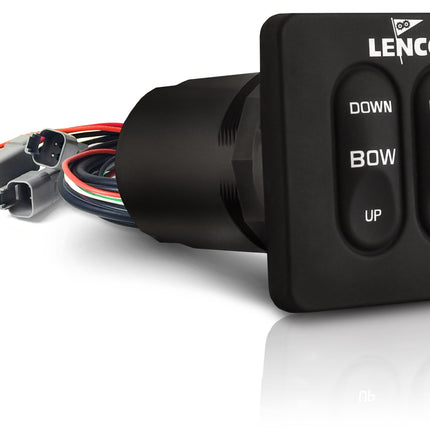

Lenco Standard Integrated Switch Kit - 12 & 24-Volt - Single Actuator Systems
Model: 15169-001
- Simple, quick, Plug & Play installation
- Instant response
- Built-in retractor
- Self-contained key pad with waterproof Plug & Play Deutsch connectors
- Wiring harness length 30" (76.2 cm) from the back of the switch bezel
- 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
- 4.08" clearance required from the back of the key pad's mounting location
Complete your Lenco single actuator trim tab system with the latest, maintenance-free, Standard (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.
What's in the Box:
- Standard Integrated Switch Kit - 12 & 24-Volt - Single Actuator Systems
- 36" power pigtail
