Description

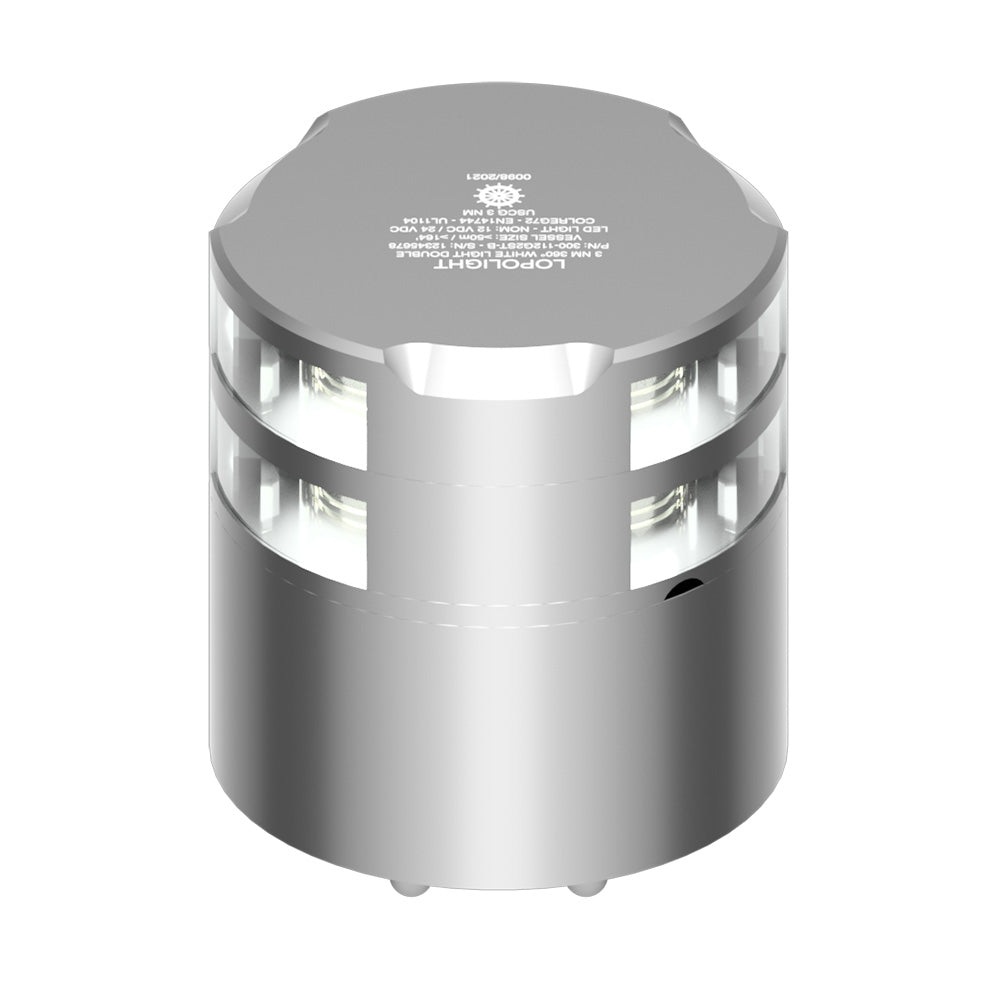

360° Double-Stacked 3nm Masthead Light - Silver Anodized
Features:
- 360° Double white
- With an aluminium base, cable side/cable down
- Includes HDPE base plate
Specifications:
- Light Color: White
- Dimensions metric: Ø92,5mm x 96,5mm
- Certification: This Navigation Light is certified by DNV, the Declaration of conformity, and the certificates can be found on www.lopolight.com under Support
- Intensity: >15cd
- Dimensions imperial: Ø3.6" x 3.8"
- Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Visibility: 3nm
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10- 32V DC
- IP Rating: IP68
- Power draw (W): 4,2
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 270
- Current consumption (mA @ 24VDC): 176
- Vessel size: Over 50M
- Min. feed wire gauge: 0.5 mm2 AWG22
- Weight (Kg): 1.31 Kg
- Weight (Oz): 46.20 oz
