Description

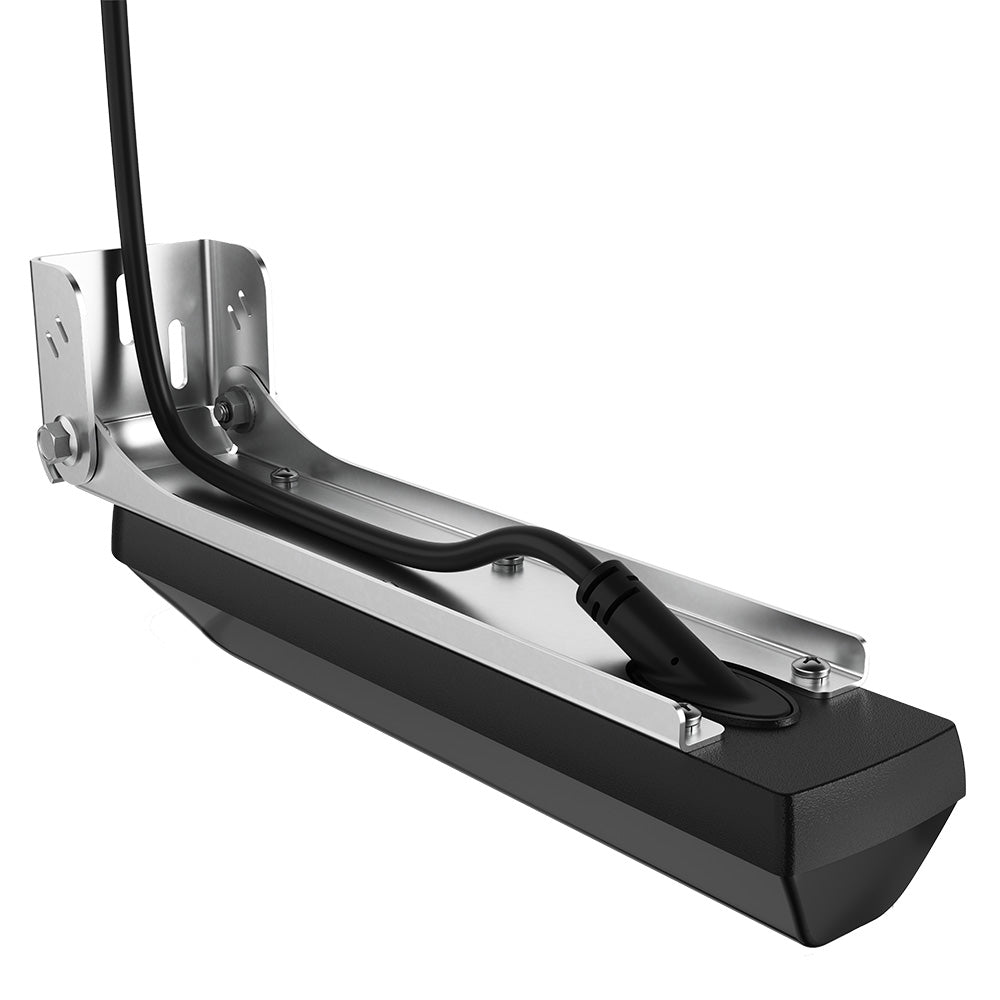

Active Imaging HD™ 2-in-1 Transducer
Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 2-in-1 sonar. Get the most precise images of fish and structure from high-frequency (up to 1.2MHz) SideScan and DownScan Imaging™, plus a FishReveal™ DownScan view that makes fish easier to see below the boat.
Features:
- High frequency (up to 1.2MHz) SideScan and DownScan Imaging deliver the most precise images of fish and structure
- FishReveal™ DownScan view makes fish identification easy
- Supports 455/800kHz and 455/1.2MHz frequencies
- The perfect complement for a factory-installed CHIRP transducer
- Smart transducer design boosts signal clarity
- Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon en Elite FS
Specifications:
- Cable Length (Feet): 25'
- Chirp: No
- Imaging: Down/Side
- Mounting Style: Transom
- Pins: 9
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 4"H x 10"W x 14"L WT: 1.5 lbs
- UPC: 9420064130375
![Lowrance Active Imaging HD 2-in-1 Transducer [000-16063-001]](http://rebellionmarine.net/cdn/shop/files/97450XL.jpg?v=1753960073)
