Description

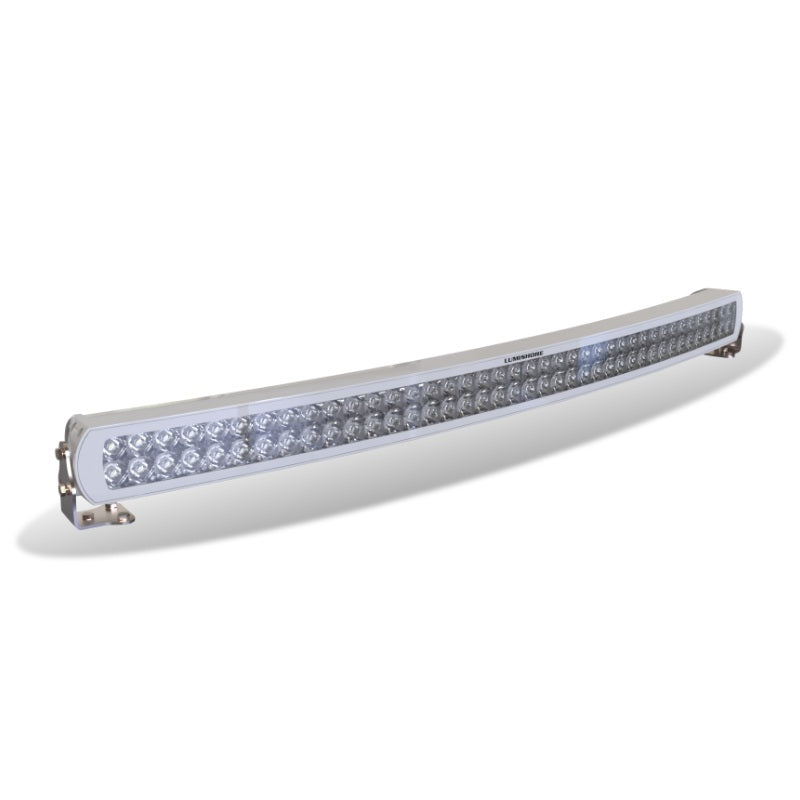

Lumishore 40in Curved Lightbar White LED, White Housing 12/24vDC
Model: 010-04464-00
Lumishore's new collection of Light Bars are designed to offer a high-intensity light source, covering a wide spread area.
The 40 feet' (100cm) Light Bar delivers class-leading performance, generating a powerful 31,680 fixture lumens of crisp, white light to illuminate your boat deck and beyond.
Designed to withstand the harshest marine environments, completely water tight (IP68 compliant) and housed in marine-grade powder coated aluminium. These sleek, low profile Light Bars enhance your boat's fit-out, even when not in use.
Controllable via an on/off switch, ECLIPSE Command Center
or EOS-LUX Command Center.
SpecificationsAvailable colors| White (5500 K) |
| Lumens |
71,280 |
| Fixture Lumens |
31,680 |
| Number & Type Of LED |
80 x 10W White LED |
| LED Power HICOB Array |
Yes |
| Typical LED Life |
50,000+ Hours |
| User Control Options |
On/Off Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command Center |
| Electrical Installation |
Simple 2 Wire Connection (3 Wires when used with EOS-LUX Command Center) |
| Housing Type |
Powder Coated Aluminium Body with Makrolon Lens |
| Driver |
Internal |
| Supply Voltage Range |
10.5-31 V DC |
| Max Current Draw 12/24V |
25.7 A/12.8 A |
| Beam Angle |
9 deg - 45 deg Letterbox Beam (Vert - Horiz) |
| Water Ingress Protection Rating |
IP68 |
| Warranty |
3 Years |
What's in the Box:
- One (1) Light Bar - Curved 40
- Stainless steel bracket and fasteners
"
