Description

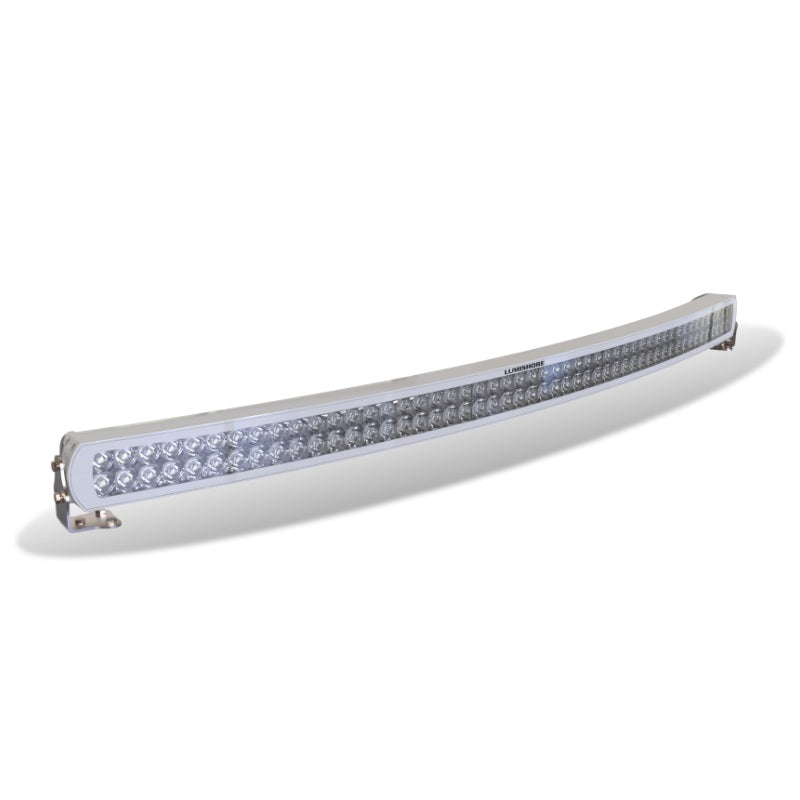

Lumishore 50in Curved Lightbar White LED, White Housing 12/24vDC
Model: 010-04466-00
Lumishore's new collection of Light Bars are designed to offer a high-intensity light source, covering a wide spread area.
The 50 feet' (130cm) Light Bar is the ultimate in marine LED lighting, generating an exceptional 39,600 fixture lumens of crisp, white light to illuminate your boat deck and beyond.
Designed to withstand the harshest marine environments, completely water tight (IP68 compliant) and housed in marine-grade powder coated aluminium. These powerful, attractive and low profile Light Bars enhance your boat's fit-out, even when not in use.
Controllable via an on/off switch, ECLIPSE Command Center
or EOS-LUX Command Center.
SpecificationsAvailable colors| White (5500 K) |
| Lumens |
89,100 |
| Fixture Lumens |
39,600 |
| Number & Type Of LED |
100 x 10W White LED |
| LED Power HICOB Array |
Yes |
| Typical LED Life |
50,000+ Hours |
| User Control Options |
On/Off Switch (Third party supplied), ECLIPSE Command Center or EOS-LUX Command Center |
| Electrical Installation |
Simple 2 Wire Connection (3 Wires when used with EOS-LUX Command Center) |
| Housing Type |
Powder Coated Aluminium Body with Makrolon Lens |
| Driver |
Internal |
| Supply Voltage Range |
10.5-31 V DC |
| Max Current Draw 12/24V |
32 A/16 A |
| Beam Angle |
9 deg - 50 deg Letterbox Beam (Vert - Horiz) |
| Water Ingress Protection Rating |
IP68 |
| Warranty |
3 Years |
What's in the Box:
- One (1) Light Bar - Curved 50
- Stainless steel bracket and fasteners
"
