Description

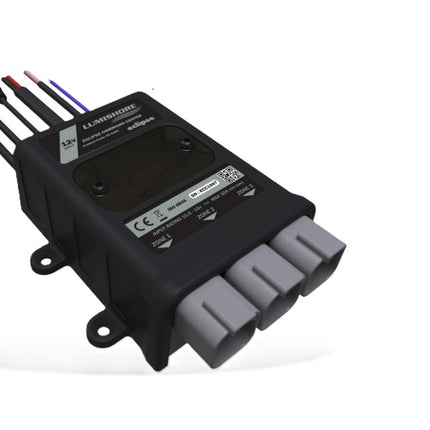

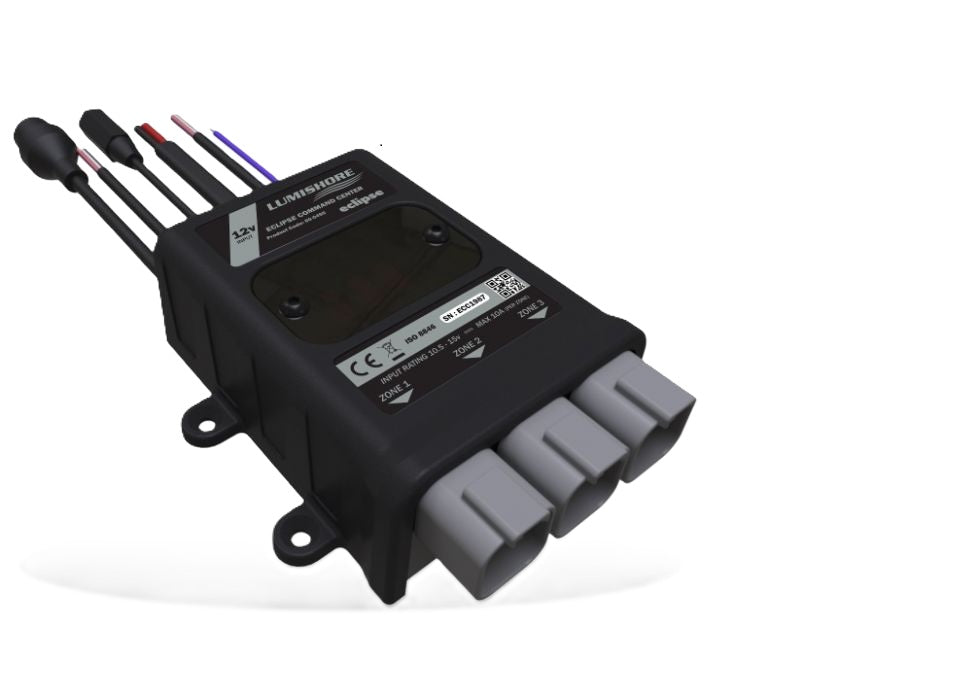

Lumishore ECLIPSE Command Center
Model: 010-04486-00
The ECLIPSE Command Center allows seamless integration and control of your ECLIPSE lights via your MFD.
This is the World's first ultra-compact box to include built in drivers and zones for multiple types of lights. With 3 built-in configurable lighting zones that can each be set up to control your lights and expansion modules available to increase that capability to up to 6 zones.
Built-in Wi-Fi allows for direct smart device connectivity. Connect to compatible MFDs via an ethernet port. Or control your lighting zones via a simple switch.
Lumishore's intuitive interface makes accessing and managing your lighting zones simple.
SpecificationsSurge Protection| Yes |
| Number of Zones |
3 (add 3 more with expansion modules) |
| Max Current Per Zone |
10A |
| Max No. Lights Per Zone |
16 (total current draw must be 10A or less) |
| Low Voltage Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Ingress Protection |
IP67 |
| Simple Installation |
Yes |
| Plug-and-Play Setup |
Yes |
| Dimming |
Yes |
| Color Selection |
Yes |
| Sound-to-light |
Yes |
| Strobe |
Yes |
| Waranty |
3 Yeaars |
| Input Voltage |
12V DC Only (10 - 15V DC) |
| Input Draw |
30A (3 Zones of 10A) |
