Description

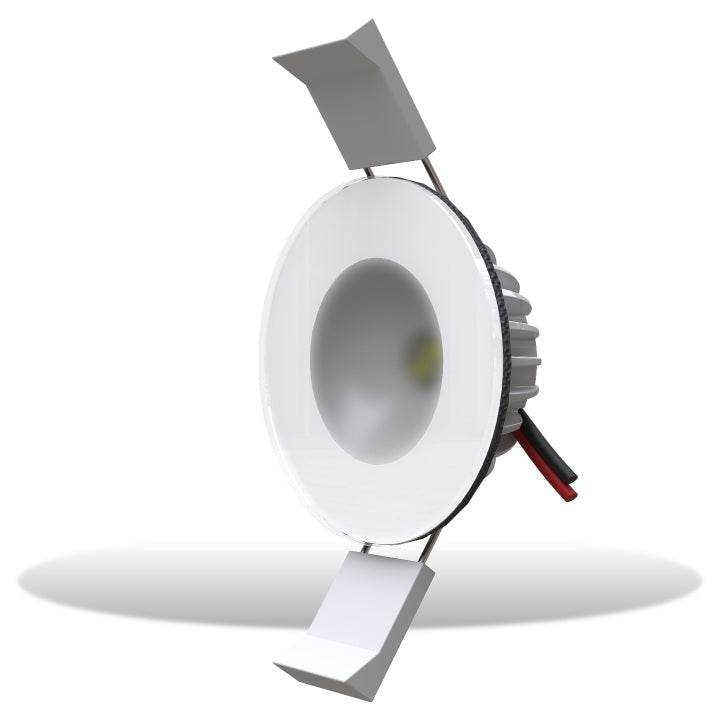

Lumishore Eclipse DL55 Blue Down Light 12/24vDC White Hosuing
Model: DL55
Lumishore's ECLIPSE Downlights provide excellent illumination to enhance a variety of indoor or outdoor overhead spaces onboard.
Constructed of a durable aluminium body with a glass front, completely water sealed and IP67 rated. Simple to install with a 2 wire hookup and a shallow depth profile of only 21mm (0.83 in).
Available in single blue and two other color options. Choose from a black or white finish to complement your boats aesthetic.
SpecificationsColor| Blue |
| LED Type |
2 x 3W Blue LEDs |
| Customer Control Options |
On/Off Switch or ECLIPSE Command Center |
| Electrical Installation |
Simple 2 Wire Installation |
| Supply Voltage Range |
12V DC Only (10 - 15V DC) |
| Max Current Draw (12/24V DC) |
0.4A |
| Ingress Protection |
IP67 |
| Front Diamater (Bezel) |
64.0mm (2.519) |
| Profile |
3.5mm (0.137 in) |
| Hole Diameter for fitting |
50.8mm (2.0 in) |
| Mechanical Installation |
Stainless Steel Spring Clips |
| Warranty |
3 Years |
"
