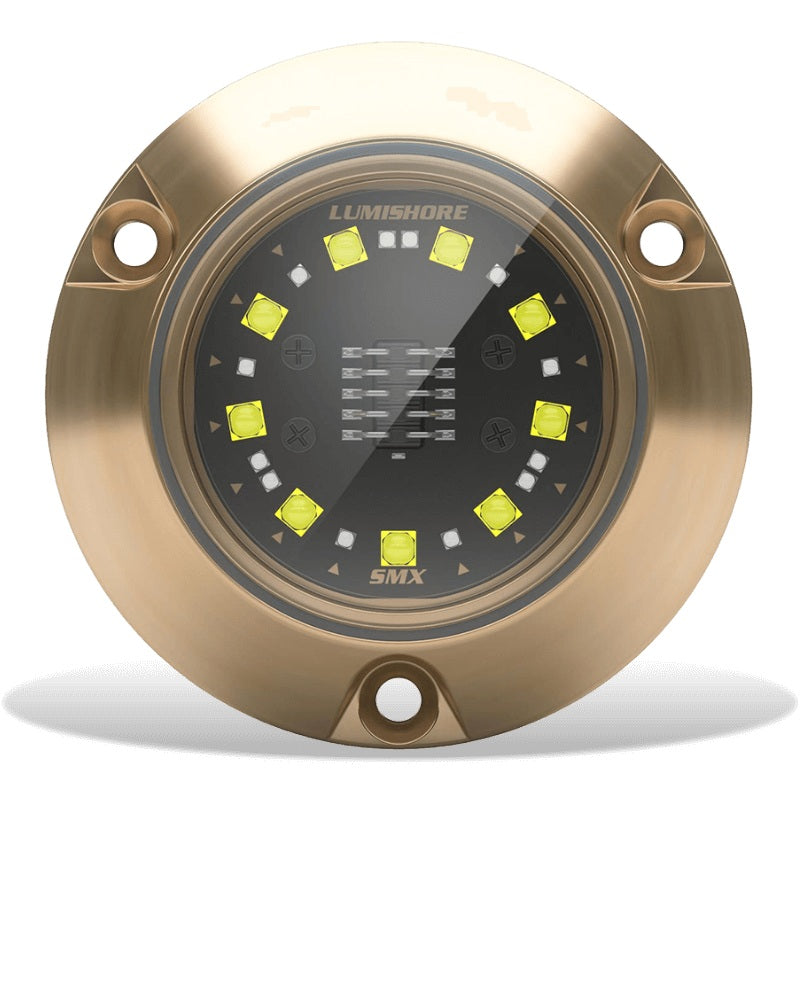

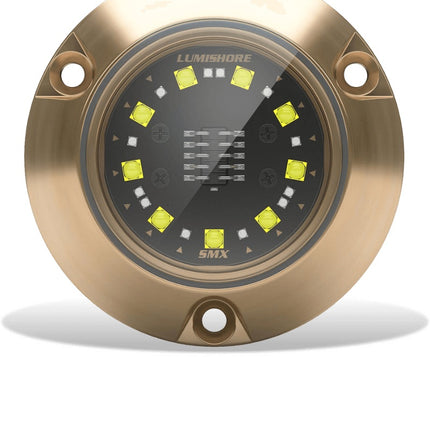

Lumishore ECLIPSE SMX24 Surface Mount Blue/White LED
Model: 600-0533 / 010-04504-00
Lumishore's compact SMX24 features 3,100 fixture lumens in a wide 90 deg beam. 2-in-1 (blue and white) in a single surface mount fixture - each color runs at full power.
Integrated driver and simple 2-wire connections make the installation of this light easier than ever.
Control the SMX24 by a standard on/off switch or the ECLIPSE Command Center.
Suitable for stepped hulls, transoms, and hull side installations.
SpecificationsAVAILABLE LED COLORS| DUAL COLOR (BLUE & WHITE) |
| LUMENS |
6,975 |
| VERIFIED FIXTURE LUMENS (WHITE) |
3,100 |
| NUMBER AND TYPE OF LED |
White - 9×5W / Blue -12x3W |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
90 deg |
| DRIVER |
MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY VOLTAGE |
12 V DC ONLY |
| MAX CURRENT DRAW |
2.5A |
| HOUSING TYPE |
MARINE BRONZE BODY/ GLASS LENS |
| USER CONTROL OPTIONS |
STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER |
| COLOR FADE CYCLE |
YES |
| FIXED STROBES |
YES |
