Description

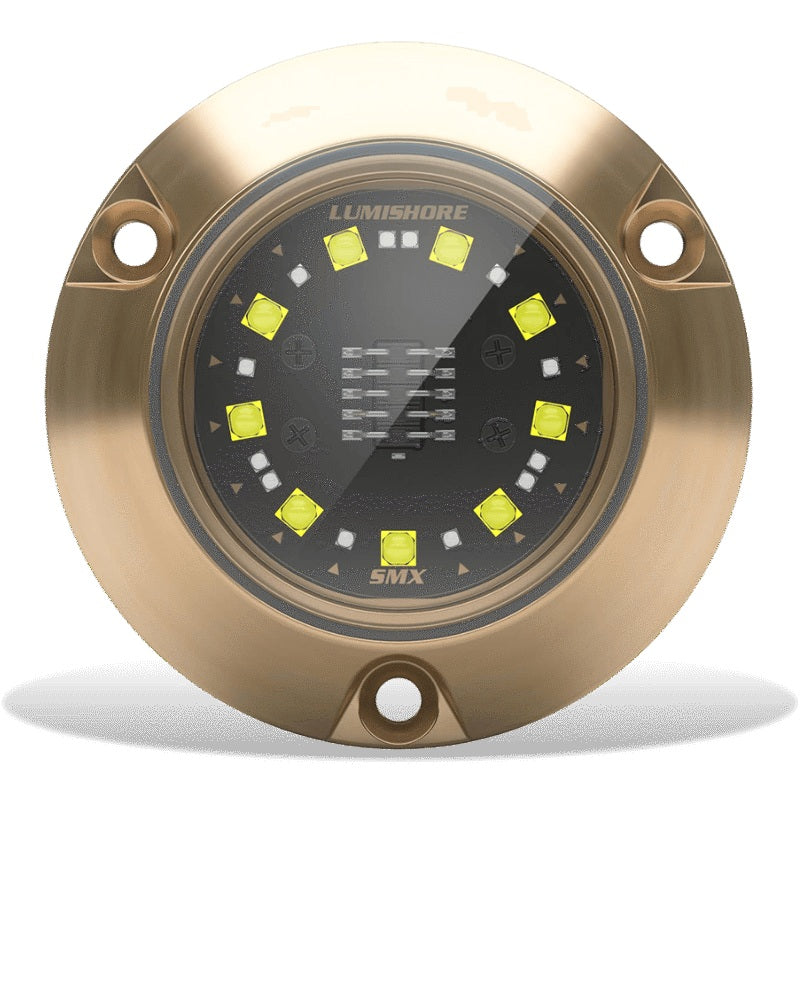

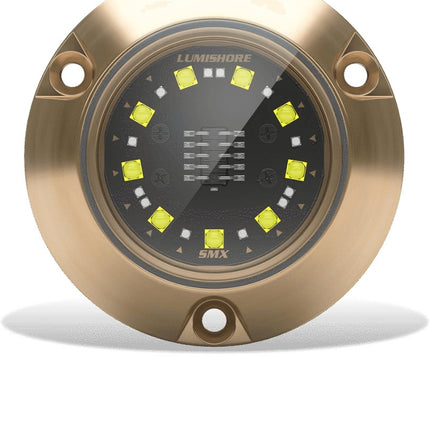

Lumishore ECLIPSE SMX24 Surface Mount White LED
Model: 60-0532 / 010-04503-00
Specifically designed for smaller boats, the SMX24 - White offers unmatched light output and optics for a light of its compact size. Flooding the water with 3,100 fixture lumens of light in a 90 deg beam.
It's built-in driver and simple 2-wire connections make the installation of this light easier than ever.
Suitable for stepped hulls, transoms, and hull side installations.
Controlled by an ON/OFF switch or the ECLIPSE Command Center.
SpecificationsCOLOR| WHITE |
| LUMENS |
6,975 |
| VERIFIED FIXTURE LUMENS (WHITE) |
3,100 |
| NUMBER AND TYPE OF LEDS |
White - 9×5W |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
90 deg |
| DRIVER |
MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY VOLTAGE |
12 V DC ONLY |
| MAX CURRENT DRAW |
2.5A
2.5A
2.5A |
| HOUSING TYPE |
MARINE BRONZE BODY/ GLASS LENS |
| USER CONTROL OPTIONS |
STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER |
| DIMMING CONTROL |
YES |
| WARRANTY |
3 Years |
