Description

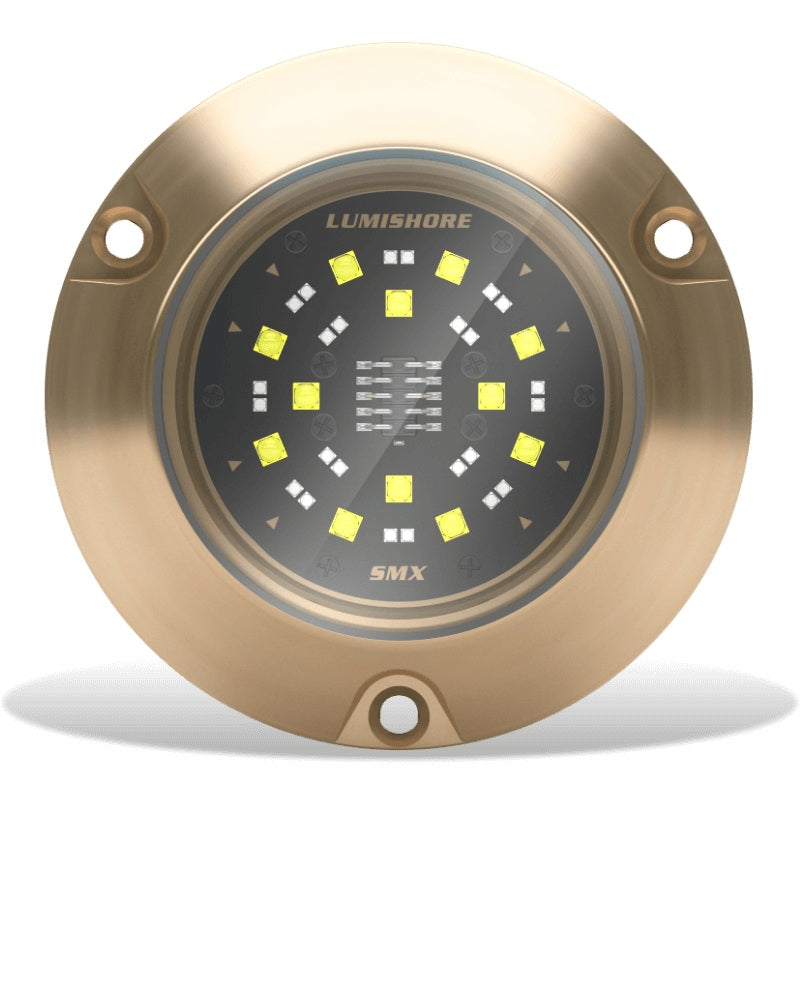

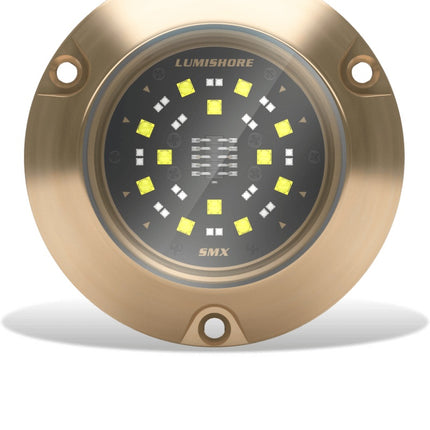

Lumishore ECLIPSE SMX54 Surface Mount Blue/White LED
Model: 60-0534 / 010-04505-00
2-lights-in-1 (blue and white) in a single high-powered bronze surface mount fixture without sacrificing brightness; both colors run at full power!
Lumishore's SMX54 delivers 7,500 fixture lumens in a wide 90 deg beam of light.
Control the SMX54 with a standard on/off switch, SUPRA i-Connect Hub & Switch or ECLIPSE Command Center.
Suitable for stepped hulls, transoms, and hull sides of nearly any type of boat.
SpecificationsAVAILABLE LED COLORS| DUAL COLOR (BLUE & WHITE) |
| LUMENS |
16,875 |
| VERIFIED FIXTURE LUMENS (WHITE) |
7,500 |
| NUMBER AND TYPE OF LED |
White - 12×5W / Blue -24×3W |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
90 deg |
| DRIVER |
MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY VOLTAGE |
12/24 V DC |
| MAX CURRENT DRAW |
5.9A / 2.8A |
| HOUSING TYPE |
MARINE GRADE BRONZE / GLASS LENS |
| USER CONTROL OPTIONS |
ON/OFF SWITCH, I-CONNECT HUB & SWITCH OR ECLIPSE COMMAND CENTER |
| LIGHTS SYNCHRONIZED |
YES |
| COLOR FADE CYCLE |
YES |
| FADE w/BRIGHTNESS ADJUST |
YES (NOT WITH ON/OFF SWITCH) |
| FIXED STROBES |
YES |
| STROBE w/SPEED ADJUST |
YES (NOT WITH ON/OFF SWITCH) |
| SYSTEM MEMORY |
YES (NOT WITH ON/OFF SWITCH) |
| Warranty |
3 YEARS |
