Description

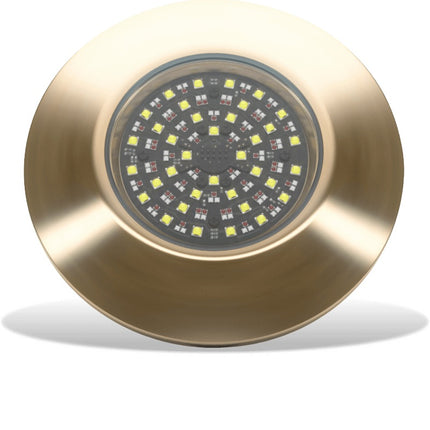

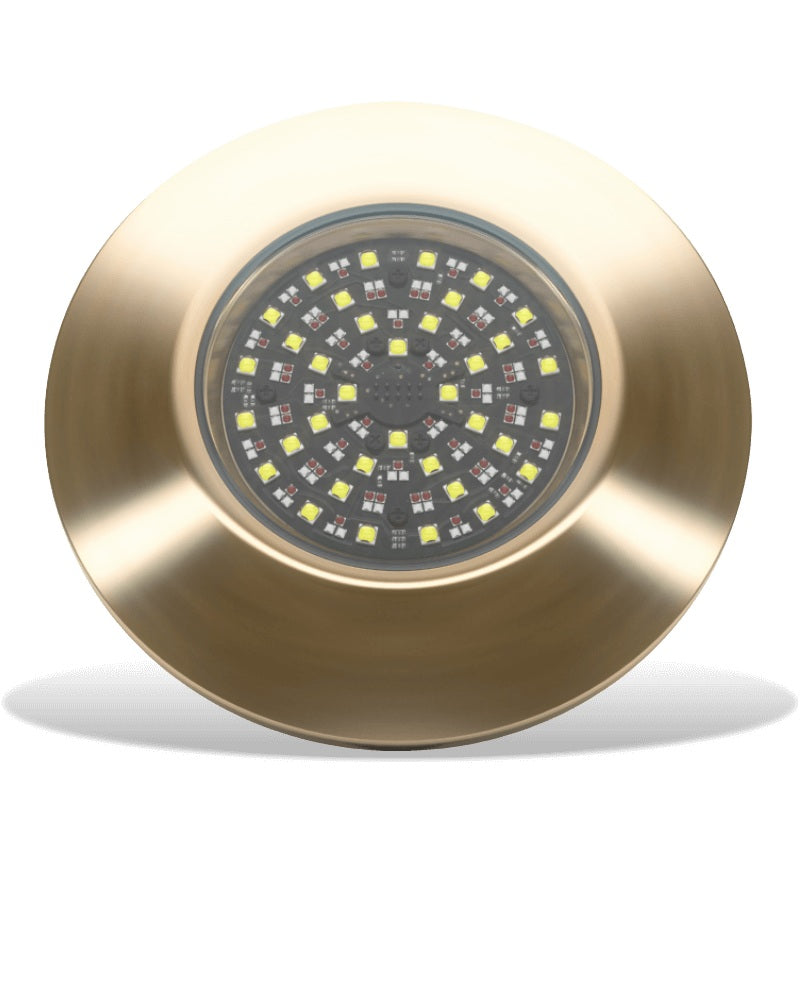

Lumishore EOS THX1604 Thru-Hull Mount and Driver RGBW LED
Model: EOS THX1604 / 010-04522-00
Lumishore's THX1604 delivers a powerful 17,500 verified fixture lumens and an ultra-wide 110 deg beam angle for the ultimate halo-effect.
Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.
THX models feature a standard 1in fitting and an external driver. Flush-fit in design, with extremely low profiles.
Suitable for transom, side and bottom mounting.
SpecificationsAVAILABLE LED COLORS| EOS FULL COLOR CHANGE (RGBW) |
| LUMENS |
39,375 |
| VERIFIED FIXTURE LUMENS (WHITE) |
17,500 |
| NUMBER AND TYPE OF LED |
White - 36 x 10W, Green - 36 x 3W, Blue - 36 x 3W, Red - 48 x 3W |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
110 deg |
| DRIVER |
Multi-Channel External Driver |
| SUPPLY VOLTAGE |
24 V DC |
| MAX CURRENT DRAW |
6.5A |
| HOUSING TYPE |
MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS |
From your MFD and/or optional Lumishore Display |
| LIGHTS SYNCHRONIZED |
YES |
| COLOR CYCLE w/SPEED ADJUST |
YES |
| COLOR SWEEP w/SPEED ADJUST |
YES |
| CUSTOMIZABLE FAVORITES |
YES |
| FIXED & RANDOM STROBES |
YES |
| PROGRAMMABLE SCENES |
YES |
| WI-FI CONTROL (APP) |
YES |
| SOUND-TO-LIGHT |
YES |
| BRIGHTNESS ADJUST |
YES |
| AUTO LIGHT DISCOVERY & SETUP |
YES |
What's in the Box:
- One (1) EOS THX1604 Light
- One (1) External Driver
- One (1) 1M DMX cable (60-0403)
