Description

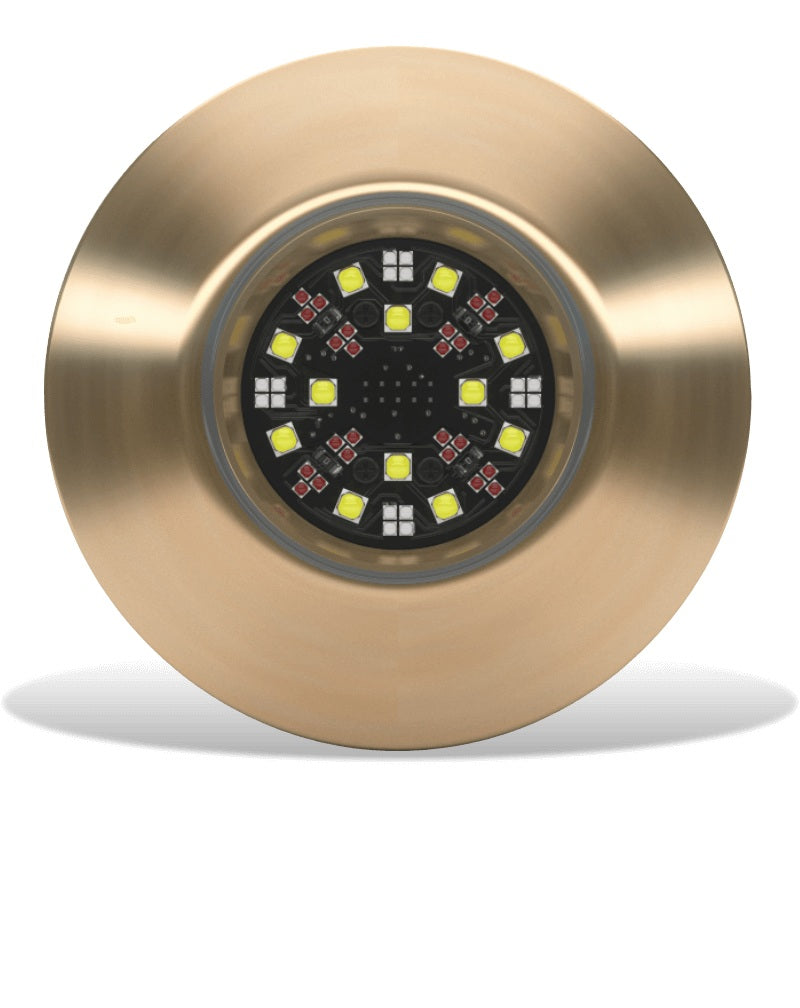

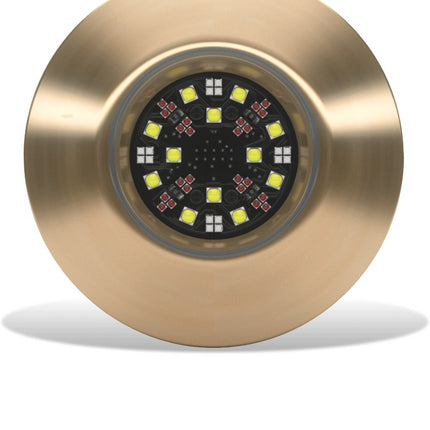

Lumishore EOS TIX404 Interchangeable Thru-Hull Mount RGBW LED
Model: EOS TIX404 / 010-04529-00
The fully controllable color change TIX404 underwater light delivers the greatest range of colors and offers a powerful 7,500 verified fixture lumens and an ultra-wide 110 deg beam angle for the ultimate halo-effect.
Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.
All Lumishore Thru-Hulls are 'flush-fit' with extremely low profiles, suitable for transom, side and bottom mounting. TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.
SpecificationsAVAILABLE LED COLORS| EOS FULL COLOR CHANGE |
| LUMENS |
16,875 |
| VERIFIED FIXTURE LUMENS (WHITE) |
7,500 |
| NUMBER AND TYPE OF LED |
White-12×10W / Green-12×3W / Blue-12×3W / Red-16×3W |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
110 deg |
| DRIVER |
Multi-Channel Internal Driver |
| SUPPLY VOLTAGE |
12/24 V DC |
| MAX CURRENT DRAW (12/24) |
5.8/2.9A |
| HOUSING TYPE |
MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS |
From your MFD and/or optional Lumishore Display |
| LIGHTS SYNCHRONIZED |
YES |
| COLOR CYCLE |
YES |
| COLOR CYCLE w/SPEED ADJUST |
YES |
| COLOR SWEEP w/SPEED ADJUST |
YES |
| CUSTOMIZABLE FAVORITES |
YES |
| FIXED STROBE (2-Speed) |
YES |
| WI-FI CONTROL (APP) |
YES |
| SOUND-TO-LIGHT |
YES |
| BRIGHTNESS ADJUST |
YES |
| AUTO LIGHT DISCOVERY & SETUP |
YES |
| WARRANTY |
3 YEARS |
What's in the Box:- One (1) EOS TIX404 Light with Built-in Driver
