Description

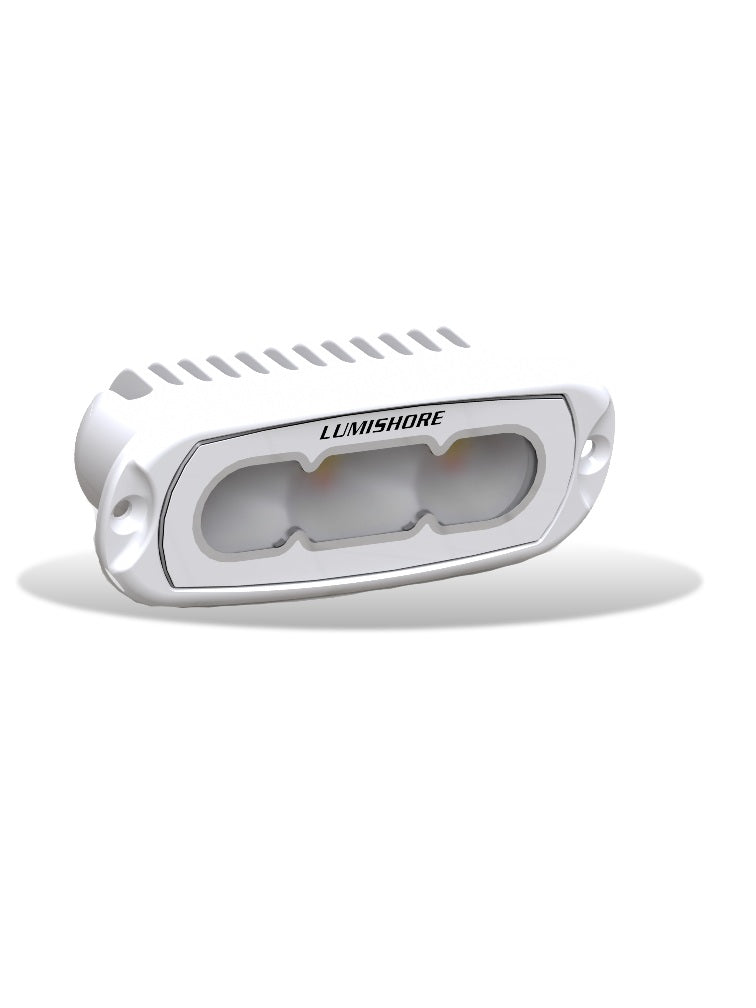

Lumishore LUX 4in Flood LED Light Flush Mount White Finish
Model: 60-0520 / 010-04500-00
Lumishore's 4 in Flush Fit Flood Lights deliver powerful CRGBW illumination in a sleek, low-profile unit. Designed for decks, cockpits, and exterior mounting points like T-tops, arches, and transoms, they offer a wide oval beam (70 deg-90 deg) and smooth, blended colors - including both warm and cold white, plus red, green, and blue.
Built for harsh marine environments with an IP68 rating and marine-grade aluminum housing. Control via switch, MFD, or Lumishore Display - with dimming as standard.
SpecificationsAvailable colors| White Color Temperature Tunable (2700K to 6500K) and Full Spectrum RGB |
| Lumens |
2,360 |
| Fixture Lumens |
1,050 |
| Number & Type Of LED |
Warm White, Cold White, Red, Green and Blue (5 Channel) |
| LED Power HICOB Array |
Yes |
| Typical LED Life |
50,000+ Hours |
| Warranty |
3 Years |
| Electrical Installation |
Simple 3 Wire Connection (see installation manual) |
| Housing Type |
Powder Coated Aluminium Body with Frosted Lens |
| Driver |
Multi-Channel Internal |
| Supply Voltage Range |
10.5-31 V DC |
| Max Current Draw 12/24V |
1.7 A/0.9 A |
| Beam Angle |
70 deg - 90 deg Oval Beam |
| Water Ingress Protection Rating |
IP68 |
