Description

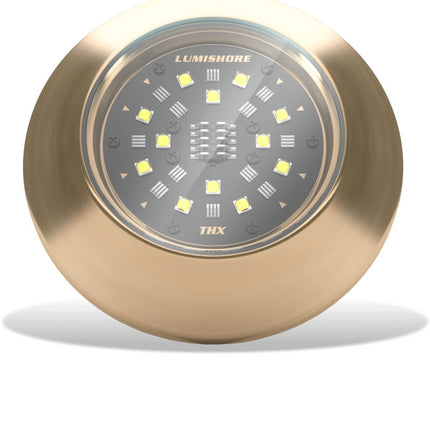

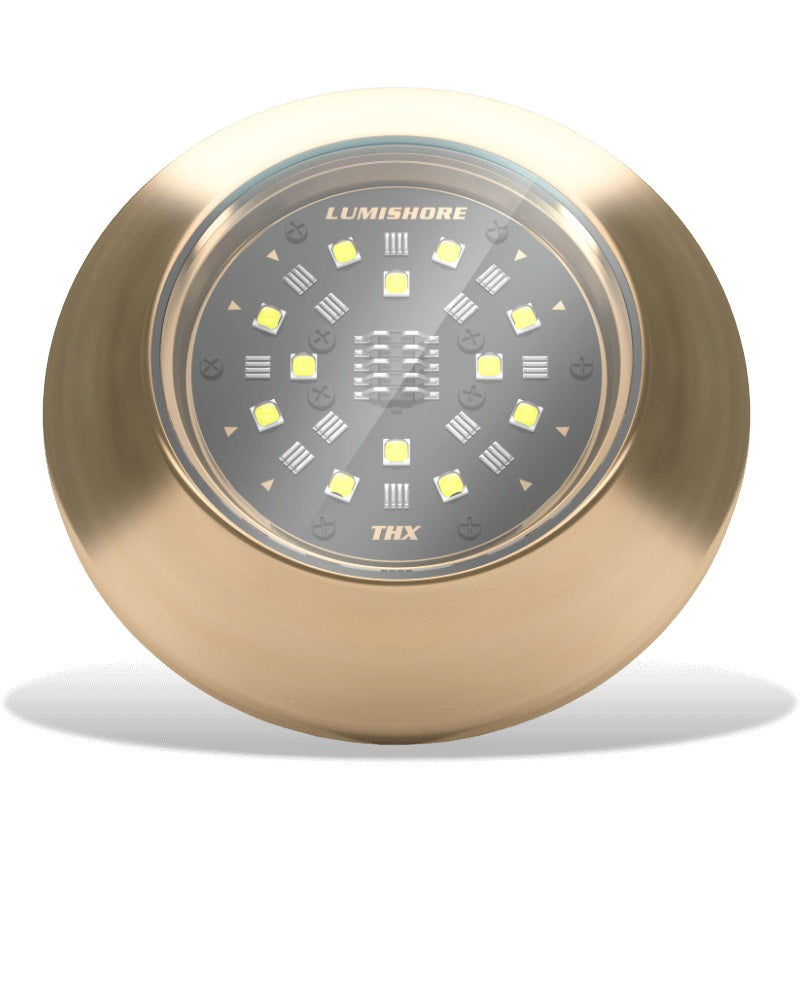

Lumishore ORA THX204 Thru-Hull Mount Blue LED
Model: THX204 / 010-04514-00
Lumishore's ultra-slim thru-hull THX204 has a small hull cut out requirement of only 5/8 in (16.5mm). Blue LED
The THX204 features 6,100 fixture lumens and an ultra-wide 110 degbeam angle, allowing the light to saturate deep into the water.
With a simple 2-wire installation and no external drivers, it's one of the easiest thru-hull lights to install and is suitable for transom, side hull or bottom installations.
Control the THX204 by a standard on/off switch.
SpecificationsCOLOR| BLUE |
| LUMENS |
13,725 |
| VERIFIED FIXTURE LUMENS (WHITE) |
6,100 |
| NUMBER AND TYPE OF LED |
Blue - 24 x 3W High Power LED |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
110 deg |
| DRIVER |
MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY VOLTAGE |
12/24 V DC |
| MAX CURRENT DRAW |
4.9A/2.4A |
| HOUSING TYPE |
MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS |
ON/OFF SWITCH |
| Warranty |
3 Years |
What's in the Box:- One (1) ORA THX204 Light with Built-in Driver
