Description

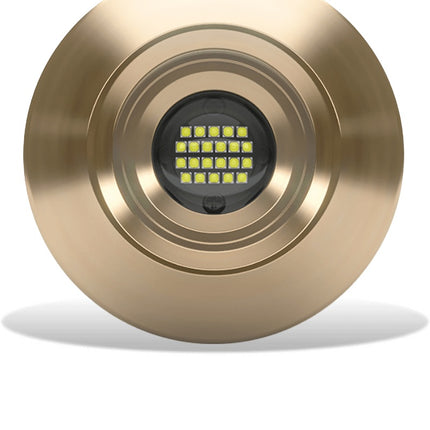

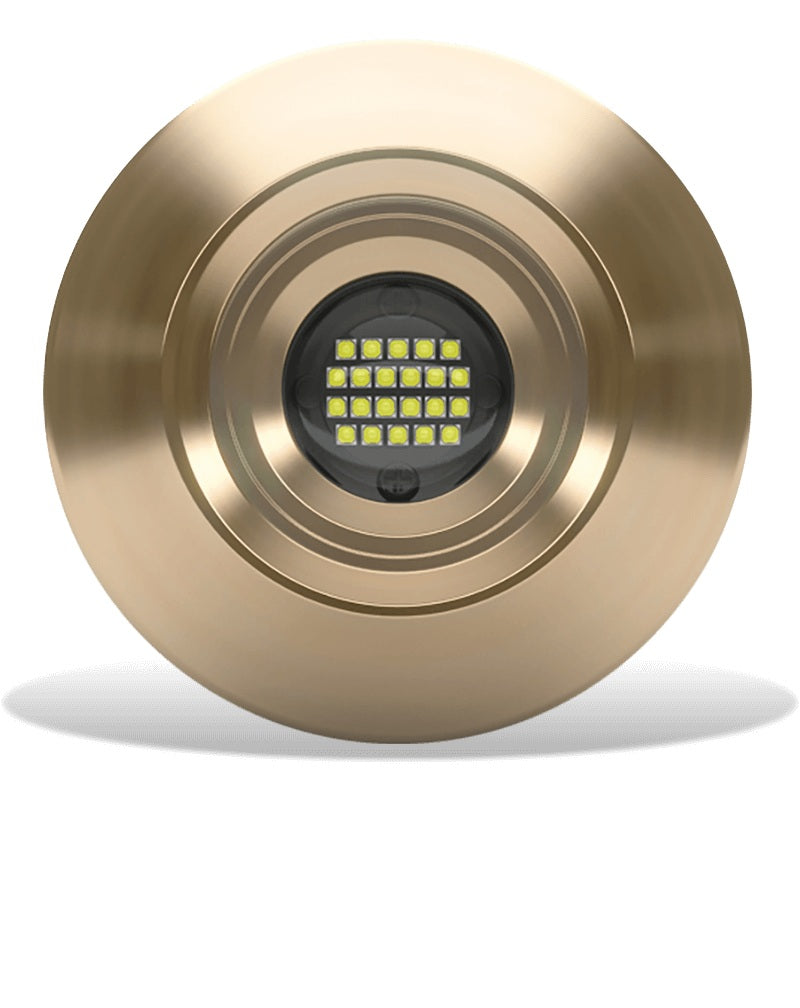

Lumishore ORA TIX204 Interchangeable Flush Fit Mount Green LED
Model: ORA TIX204 / 010-04525-00
The TIX204 packs a powerful 5,300 fixture lumens into a compact, low profile interchangeable thru-hull.
Available in single color Blue, White or Green with a focused 60 deg beam angle.
TIX models feature an internal LED array and integrated driver for the ability to service from inside the hull and to simplify installation.
Easily controlled by a standard on/off switch.
Suitable for transom, side and bottom mounting.
SpecificationsLED COLOR| GREEN |
| LUMENS |
11,925 |
| VERIFIED FIXTURE LUMENS (WHITE) |
5,300 |
| NUMBER AND TYPE OF LED |
Green - 22 x 3W High Power LED |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
60 deg |
| DRIVER |
MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY VOLTAGE |
12/24 V DC |
| MAX CURRENT DRAW |
4.0A/1.9A |
| HOUSING TYPE |
MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS |
ON/OFF SWITCH |
| WARRANTY |
3 YEARS |
What's in the Box:- One (1) ORA TIX204 Light with Built-in Driver
