Description

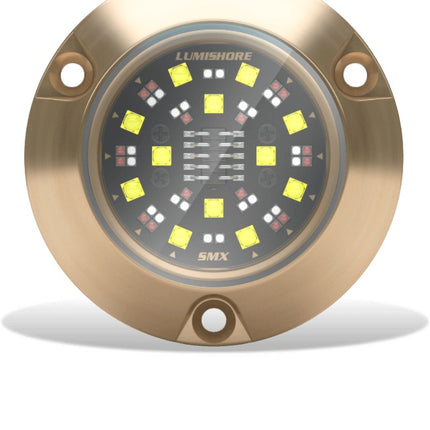

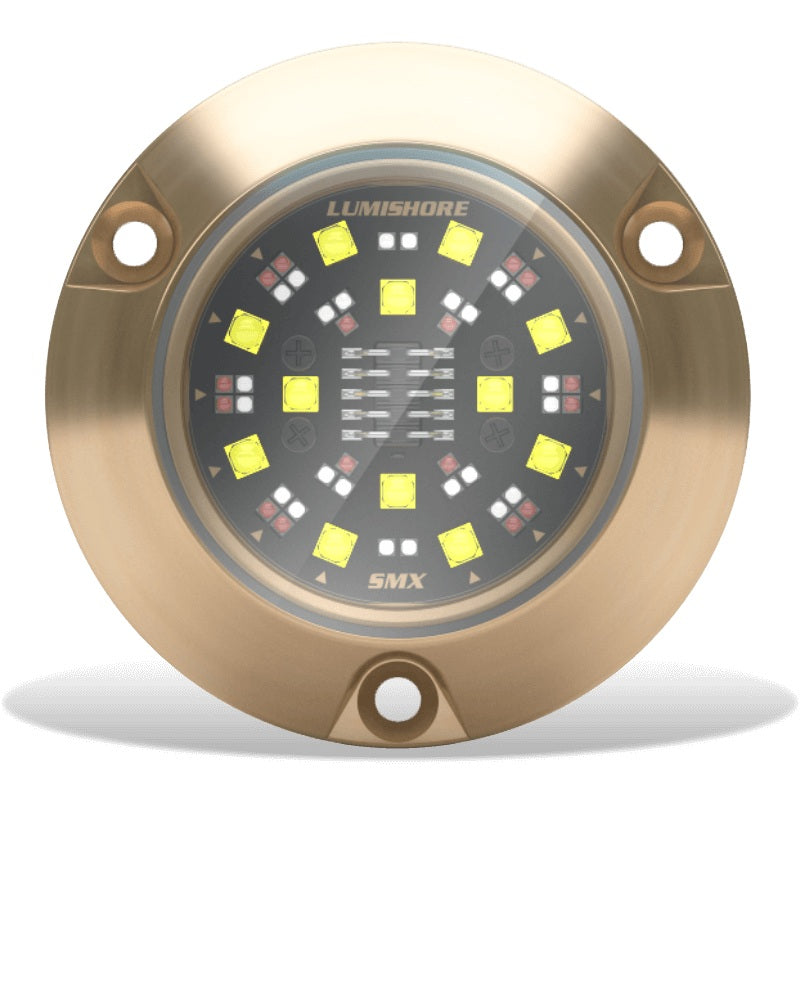

Lumishore SMX94 RGBW Surface Mount
Model: 60-0535 / 010-04506-00
As well as efficiency and performance, the SMX94 is unmatched in ease of installation due to its built-in driver and simple 2-wire connections.
Enjoy full-spectrum RGBW color change lighting, that packs a powerful 6,000 fixture lumens into a wide 90 deg beam.
Control the SMX94 with a standard on/off switch to cycle through colors; toggle to pause on any color in the spectrum or the ECLIPSE Command Center.
Suitable for stepped hulls, transoms, and hull side installations.
SpecificationsAVAILABLE LED COLORS| FULL COLOR SELECT (RGBW) |
| LUMENS |
13,500 |
| VERIFIED FIXTURE LUMENS (WHITE) |
6,000 |
| NUMBER AND TYPE OF LED |
White-12×5W / Green-12×3W / Blue-12×3W / Red-16×3W |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
90 deg |
| DRIVER |
Multi-Channel Internal Driver |
| SUPPLY VOLTAGE |
12/24 V DC |
| MAX CURRENT DRAW |
3.5A/1.75A |
| HOUSING TYPE |
MARINE GRADE BRONZE / GLASS LENS |
| USER CONTROL OPTIONS |
STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER |
| Warranty |
3 YEARS |
