Description

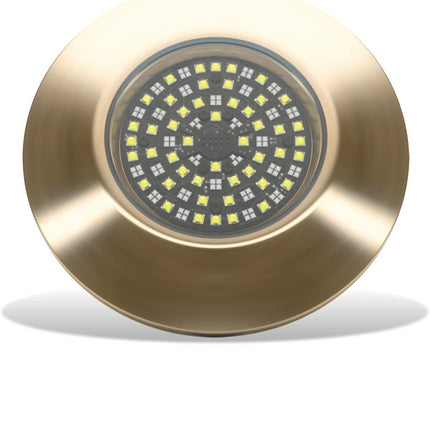

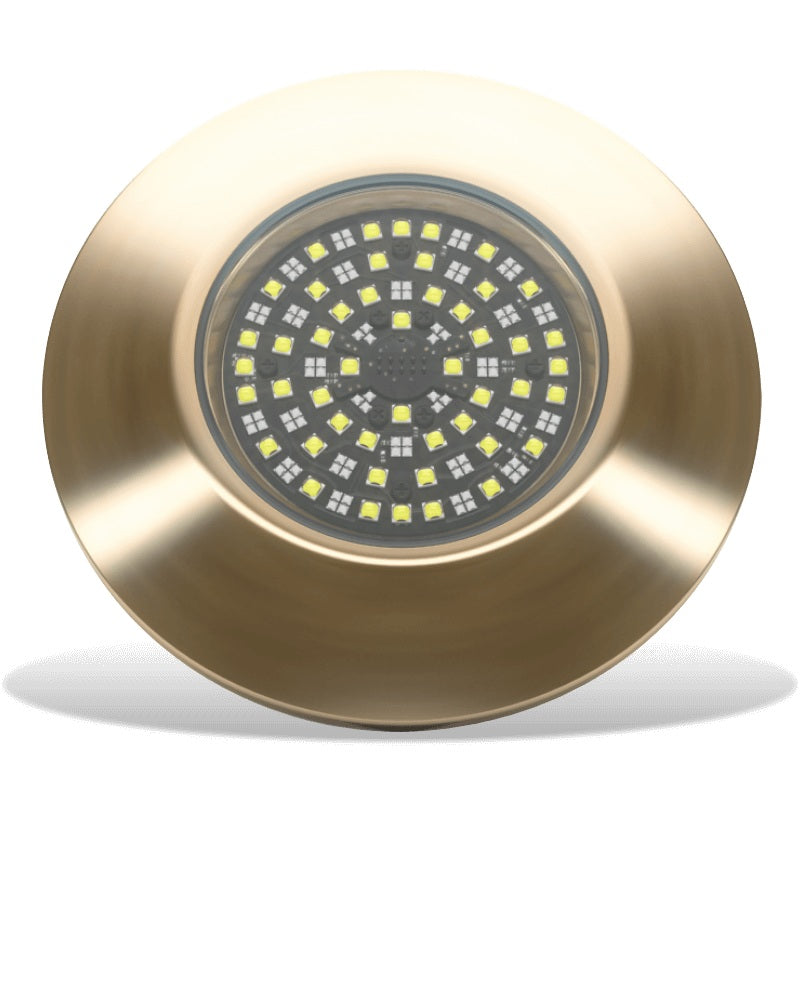

Lumishore SUPRA THX1604 Thru-Hull Mount and Driver Blue/White LED
Model: THX1604 / 010-04519-00
Lumishore's THX1604 offers 20,000 fixture lumens and an ultra-wide 110 deg beam angle for the ultimate swimming pool effect. '2-lights-in-1 feet (blue and white) in a single full powered thru-hull fixture!
Switch between colors, fade colors, adjust brightness, and strobe in two speeds.
Controlled by the SUPRA I-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge.
THX models feature a standard 1in fitting and external driver. Flush-fit in design, with extremely low profiles, suitable for transom, side and bottom mounting.
SpecificationsAVAILABLE LED COLORS| DUAL COLOR (BLUE & WHITE) |
| LUMENS |
45,000 |
| VERIFIED FIXTURE LUMENS (WHITE) |
20,000 |
| NUMBER AND TYPE OF LED |
White - 48 x 10W, Blue - 108 x 3W |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
110 deg |
| DRIVER |
Multi-Channel External Driver |
| SUPPLY VOLTAGE |
24 V DC |
| MAX CURRENT DRAW |
6.5A |
| HOUSING TYPE |
MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS |
i-CONNECT HUB & SWITCH OR YOUR MFD WITH THE SUPRA BRIDGE |
| LIGHTS SYNCHRONIZED |
YES |
| BRIGHTNESS ADJUST |
YES |
| STROBE |
YES |
| SYNCHRONIZED STROBE |
YES |
| FADE MODE |
YES |
| SYNCHRONIZED FADE MODE |
YES |
What's in the Box:
- One (1) SUPRA THX1604 Light
- One (1) Driver
