Description

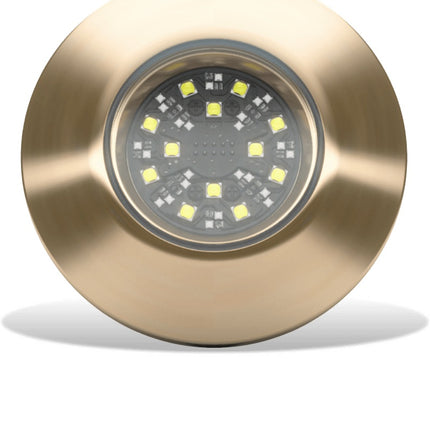

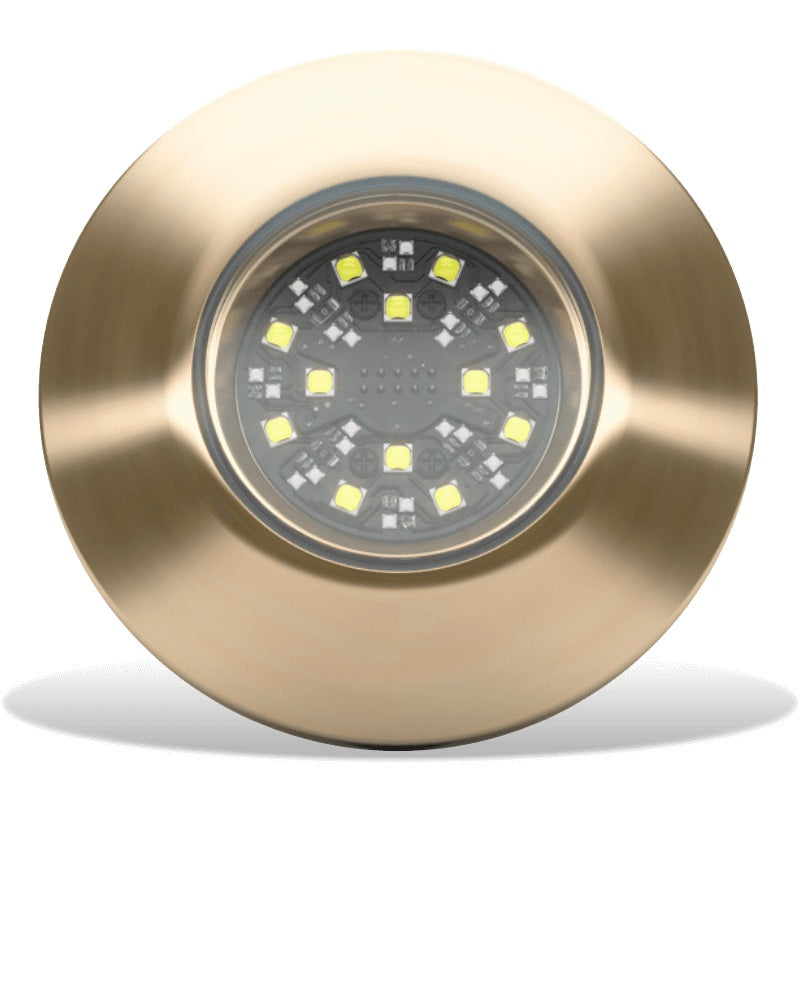

Lumishore SUPRA THX404 Thru-Hull Mount and Driver Blue/White LED
Model: THX404 / 010-04516-00
Lumishore's THX404 delivers a powerful 8,150 fixture lumens and an ultra-wide 110 deg beam angle for the ultimate halo-effect.
The dual color THX404 underwater LED light gives you independent control over two colors (blue and white). Easily switch between colors, fade colors, adjust brightness, and strobe in two speeds.
Controlled by the SUPRA I-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge.
THX models feature a standard 1in fitting and external driver. Flush-fit in design, with extremely low profiles, suitable for transom, side and bottom mounting.
SpecificationsAVAILABLE LED COLORS| DUAL COLOR (BLUE & WHITE) |
| LUMENS |
18,340 |
| VERIFIED FIXTURE LUMENS (WHITE) |
8,150 |
| NUMBER AND TYPE OF LED |
White - 12 x 10W, Blue - 24 x 3W |
| LED POWER - HICOB ARRAY |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
110 deg |
| DRIVER |
MULTI-CHANNEL EXTERNAL DRIVER |
| SUPPLY VOLTAGE |
12/24 V DC |
| MAX CURRENT DRAW (12/24) |
6.4/3.2A |
| HOUSING TYPE |
MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS |
I-CONNECT HUB & SWITCH OR MFD WITH SUPRA BRIDGE |
| LIGHTS SYNCHRONIZED |
YES |
| BRIGHTNESS ADJUST |
YES |
| STROBE |
YES |
| SYNCHRONIZED STROBE |
YES |
| FADE MODE |
YES |
| SYNCHRONIZED FADE MODE |
YES |
| Warranty |
3 YEARS |
What's in the Box:
- One (1) SUPRA THX404 Light
- One (1) Driver
