Description

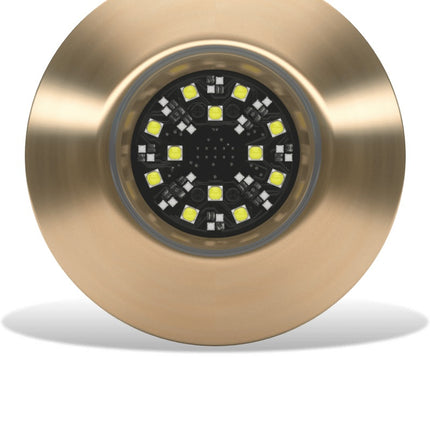

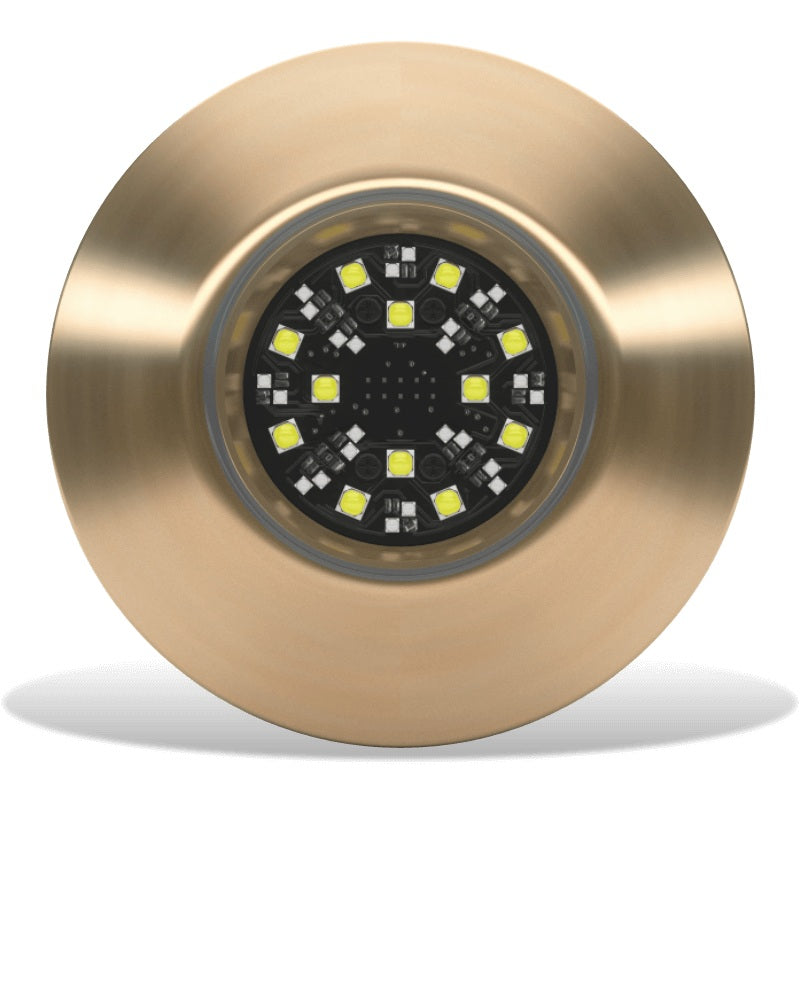

Lumishore SUPRA TIX404 Interchageable Thru Hull Blue/White LED
Model: SUPRA TIX404 / 010-04526-00
Lumishore's TIX404 is a dual-color, full power underwater LED light that produces 8,150 fixture lumens and an ultra-wide 110 deg beam angle!
Available in blue and white. Easily switch between colors, fade colors, adjust brightness, and strobe in two speeds.
TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.
Controlled by the SUPRA i-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge Module.
Suitable for transom, side and bottom mounting.
SpecificationsAVAILABLE LED COLORS| DUAL COLOR (BLUE & WHITE) |
| LUMENS |
18,340 |
| VERIFIED FIXTURE LUMENS (WHITE) |
8,150 |
| NUMBER AND TYPE OF LED |
White - 12 x 10W, Blue - 24 x 3W |
| LED POWER - HICOB ARRAY: |
YES |
| TYPICAL LED LIFE |
50,000+ HOURS |
| BEAM ANGLE (DEGREES) |
110 deg |
| DRIVER |
Multi-Channel Internal Driver |
| SUPPLY VOLTAGE |
12/24 V DC |
| MAX CURRENT DRAW (12/24) |
6.4/3.2A |
| HOUSING TYPE |
MARINE GRADE ALUMINUM BRONZE |
| USER CONTROL OPTIONS |
i-CONNECT HUB & SWITCH OR YOUR MFD WITH THE SUPRA BRIDGE |
| LIGHTS SYNCHRONIZED |
YES |
| BRIGHTNESS ADJUST |
YES |
| STROBE |
YES |
| SYNCHRONIZED STROBE |
YES |
| FADE MODE |
YES |
| SYNCHRONIZED FADE MODE: |
YES |
| WARRANY |
3 YEARS |
What's in the Box:- One (1) SUPRA TIX404 Light with Built-in Driver
