Description

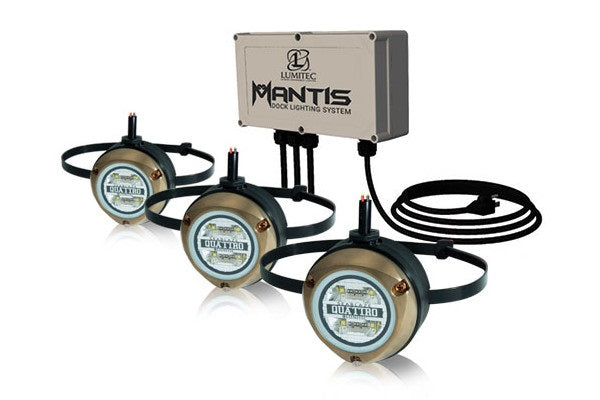

Lumitec Mantis Dock Light Kit
Model: 101525
Lumitec’s Mantis Dock Light system leverages the cutting edge Quattro Spectrum underwater light, but adds an innovative Zip-Mount™ universal mounting system and a completely new full-immersion rear seal and wire technology. Lights mount easily to square or round pilings up to 14" in diameter / 12" square — even on pilings with the typical ‘fenders’ above the waterline. Like the SeaBlaze Quattro Spectrum, Mantis’ lights are powerful (2,000+ lumens) and reliable. A typical installation takes less than 90 minutes, and doesn’t even require a permit in many municipalities. Once installed select a mesmerizing full-color RGBW cross fade, bright fish-attracting white, or virtually any user-selected color output. Or add an optional fourth light for even more brilliance. The UL Listed system is powered by an IP68 rated power supply in a durable weatherproof enclosure, and is easily plugged in to any standard outlet for quick and easy DIY installation. All wiring, connectors, mounts, and hardware included. 3 year warranty.
Specifications
| Lumens (White) |
2000 x 3 |
| Volatage |
10-30vDC |
| Current draw |
2.1A @ 12vDC, 1.1A @ 24vDC |
| Rated watts |
25 per light |
| CCT |
6500 |
| CRI |
70+ |
| Time Toggled Protocol |
Yes |
| Third Party Dimmer Compatibility (3PD) |
No |
| Color Match Commitment (CM): |
NA |
| Mounting Hole Diameter |
0.5" |
| Depth |
0.71" |
| Diameter |
3.85" |
What's in the Box:
- Power Supply
- Quattro Spectrum Lights with 30' cable x 3
- Zip tie mounts x 3
- Mounting hardware
