Description

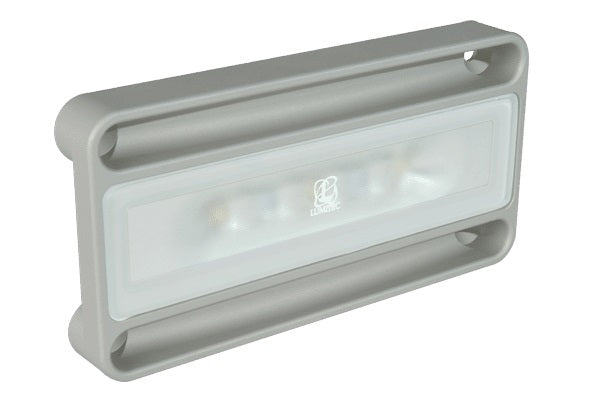

Lumitec Nevis2 Engine Room
White/Red LEDLight
Model: 101148
With more than 1,000 integrating sphere tested lumens, the Nevis2 douses hard to light areas with a 180-degree spread of bright even light. The Nevis2 is the world's FIRST two-color mechanical space and compartment light with 30% more usable light than our successful original Nevis line. Available in white/red or white/blue, certified as ignition protected. Completely sealed and compatible with most PWM LED dimmers.
SpecificationsLumens (White)| 1000 |
| Voltage |
10-30vDC |
| 12v DC Amps |
1.3A |
| 24v DC Amps |
600mA |
| Rated Watts |
16 |
| CCT |
5000 |
| CRI |
70+ |
| Op. Temp F/C |
-31/35 to + 131/55 F |
| Timed Toggled Protocol (TTP) |
Yes |
| Third Party Dimmer Compatibility (3PD) |
Yes |
| Color Match Commitment (CM) |
Yes |
| Mounting Hole Diameter |
5/32 |
| Height |
2.5in (6.35cm) |
| Width |
5in (12.7cm) |
| Depth |
0.63in (1.60cm) |
| Diameter |
N/A |
"
