Description

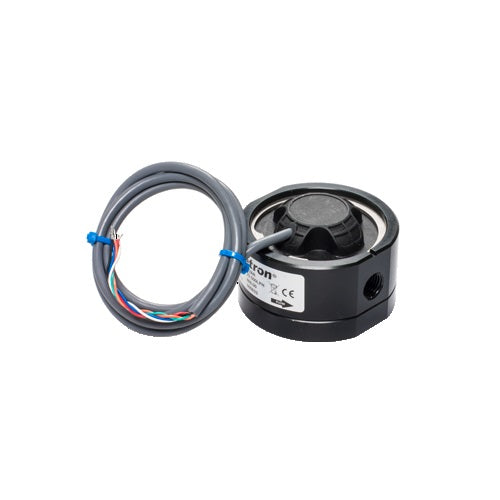

Maretron M2AR Fuel Flow Sensor
25 to 500 LPH (6.6 to 132 GPH)
Model: M2AR
UPC: 873804003535
For use with Maretron FFM100 Fuel Flow Meter
SpecificationsOperating Temperature| -40 degC to 80 degC (-40 degF to 176 degF) |
| Storage Temperature |
-65 degC to 170 degC (-85 degF to 338 degF) |
| Port Size |
1/4 in NPT Female |
| Accuracy % Reading |
±0.25% (With K factor on sensor entered into FFM100) |
| Maximum Viscosity |
1000 cPs |
| Maximum Operating Pressure |
68.95 Bar (1000 PSI) |
| Strainer Size |
200 Mesh (If not already installed after fuel filter) |
| Cable Length |
1m (3.28 ft) |
| Weight |
1.66lbs |
| Dimensions |
2.91 in x 2.80 in x 1.91 in |
