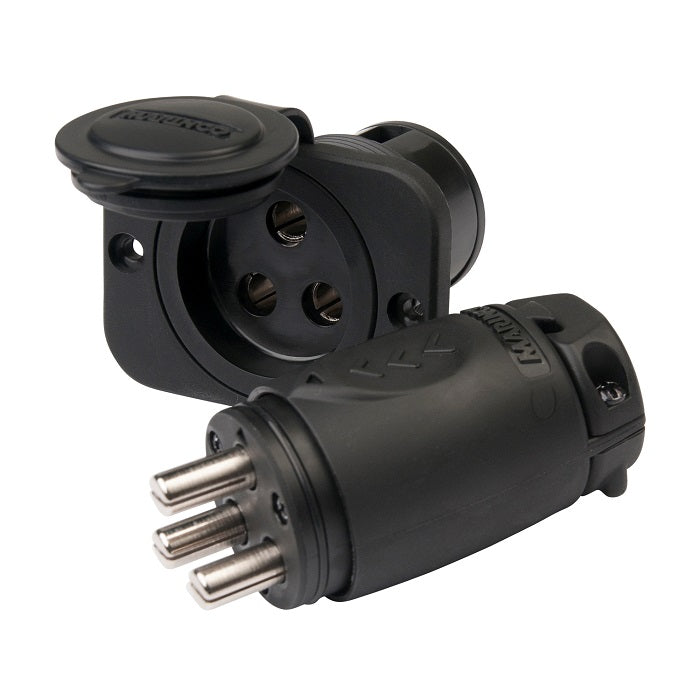

70A plug and receptacle for modern trolling motors in a compact, waterproof footprint. The plug features an integrated strain relief and thumbprint locator to mate with the keyed receptacle.
| Plug |
| Maximum Amperage |
70A (12V and 24V)
60A (36V and 48V |
| Voltage |
12V, 24V, 12/24V, 36V, 24/36V, & 48V |
| Wire |
2 or 3 |
| Gender |
Male |
| Terminals |
Double Set Screw w/ferrule |
| Wire Size |
8AWG and 6AWG |
| Receptacle |
| Maximum Amperage |
70A (12V and 24V)
60A (36V and 48V |
| VoltageVoltageVoltageVoltageVoltageVoltageVoltage |
12V, 24V, 12/24V, 36V, 24/36V, & 48V |
| Wire |
2 or 3 |
| Gender |
Female |
| Terminals |
Double Set Screw w/ferrule |
| Mounting Hole size |
1.75" |
| Mounting Thickness |
1" Max |
| Material Specifications |
| Body |
Nylon |
| Contacts |
Nickle Plated Brass |
| Terminal Screws |
Nickle Plated Brass |
