Description
Accessory Panels
These versatile panels are ideal for smaller vessels with only a limited number of electrical circuits, or for larger systems where their modular design makes for an easy and attractive expansion of existing system capacity.
Stock panels with breakers installed come standard with DC indicator lights, but may be factory modified with AC indicator lights instead. Blank versions of the panels come with all necessary hardware to install lights and breakers. All panels are provided with a circuit identification label set of 22 common on-board electrical functions (see below).

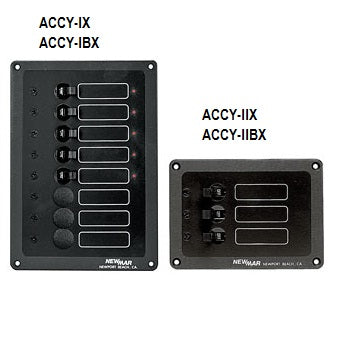

ACCY-IX:
8 breaker capacity, 5 installed standard; 2-5A, 1-10A, 1-15A, 1-20A or specify. 8 DC circuit "ON" indicator lights installed standard, AC lights optional. Size: 7 1/2 in x 5 1/4 in, Weight: 2 lbs.
ACCY-IBX: Blank version of ACCY-IX above. No breakers provided. Label set, light and breaker mounting hardware provided. Weight: 1 lb.
Half-height version of ACCY-IX at left. 3 breaker capacity, 3 installed standard; 3 DC ?ON? indicator lights installed standard - AC optional. 1-5A, 1-10A 1-15A or specify. Size: 3 3/4 in x 5 1/4 in, Weight: 1 lb.
ACCY-IIBX:
Blank version of ACCY-IIX above. No breakers or lights provided. Label set, light and breaker mounting hardware provided. Weight: 1 lb.
Installation Cut-Out Dimensions*
| ACCY-IX | 4 X 6 | | ACCY-IIBX | 4 X2.5 |
* Allow approximately 3 in depth clearance for all panels on this page.
Label Set Provided
| |
ACCESSORY
AFT CABIN
ANCHOR
BILGE PUMP
BOW
CABIN LIGHTS
ENGINE ROOM
| FORE CABIN
MAIN CABIN
MAST
NAV/COM
OUTLETS
REFRIGERATOR
RUNNING
| SPARE
SPREADER
SUMP PUMP
WATER HEATER
WATER PRESSURE
WINDLASS
WINDSHIELD |
