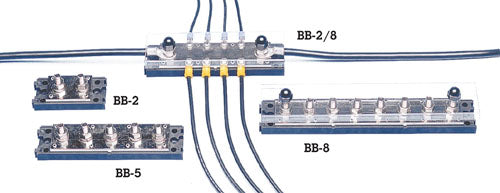

Newmar BB-5 Buss Bar

Description

  • Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16 in studs on 1 in centers in 1/4 in thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16 in ring terminals.
  • One combination model features two 5/16 in studs and eight #8 screws, accommodating multiple size wire terminals.
  • All bus material is nickel-plated copper.
  • A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs.
  • The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting.
Qty. of 5/16 in Studs Base Size
2 3 1/16 in x 1 1/2 in
2 plus 8 - #8 screws 6 1/16 in x 1 1/2 in
5 6 1/16 in x 1 1/2 in
8 9 1/16 in x 1 1/2 in

Newmar BB-5 Buss Bar

Product form

$120.55

    Description

    • Ideal as a DC ground tie point or positive bus, these heavy duty, 500 amp rated bus bar assemblies feature 5/16 in studs on 1 in centers in 1/4 in thick copper bar for common connection/distribution of large wire gauges and accommodate 5/16 in ring terminals.
    • One combination model features two 5/16 in studs and eight #8 screws, accommodating multiple size wire terminals.
    • All bus material is nickel-plated copper.
    • A clear insulating protective cover is provided to prevent short circuits and provide visibility of lugs.
    • The mounting bases are keyed for interlocking and may be mated with the terminal strips (described above). Conductive parts are captured and recessed away from the mounting surface. Use #8 or #10 screws for mounting.
    Qty. of 5/16 in Studs Base Size
    2 3 1/16 in x 1 1/2 in
    2 plus 8 - #8 screws 6 1/16 in x 1 1/2 in
    5 6 1/16 in x 1 1/2 in
    8 9 1/16 in x 1 1/2 in
