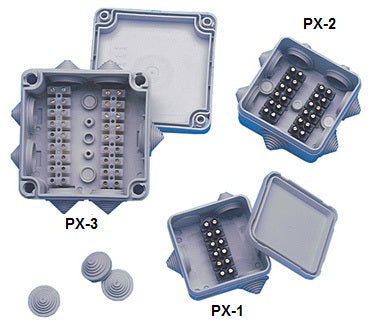

Newmar PX-2 Junction Box Waterproof

Description

Waterproof Junction Boxes

  • Ideal for making wiring connections above or below decks, even in areas subject to occasional spray
  • Similar to BX Series junction boxes, but made from rugged, non-corrosive, high impact polypropylene
  • Snap-on cover provides watertight seal
  • "Universal" cut-to-fit (see diagram) graduated diameter cable entries accommodate wide cable range
  • Multiple position connector strips with "captive" screw compression wire terminals installed - meets ABYC standards
  • Multiple knockouts provided for conduit access (in addition to cable entries)
  • IEC Waterproof Rating: IP54 - "Water projected in jets against the enclosure from any direction shall have no harmful effects."

Specifications

Model PX-1 PX-2 PX-3
Number of Connector Strips 1 2 2
Positions per Strip 6 6 9
Max Wire Gauge 16 16 16
Number of Cable Entry Ports 5 7 7
Number of Cable Entries Installed 3 7 7
Spare Cable Entries Provided 2 0 0
Cable Diameter Range (inches) .14-.81 .14-.81 .14-1.0
Cable Diameter Range (mm) 3.5-20.5 3.5-20.5 3.5-25.5
Box Size Inches 2.95 x 2.95 x 1.66 3.35 in x 3.35 x 1.66 4.45 x 4.45 x 2.29
Box Size Centimeters 7.5 x 7.5 x 4.2 8.5 x 8.5 x 4.2 11.3 x 11.3 x 5.8

Newmar PX-2 Junction Box Waterproof

Product form

$57.93

    Description

    Waterproof Junction Boxes

    • Ideal for making wiring connections above or below decks, even in areas subject to occasional spray
    • Similar to BX Series junction boxes, but made from rugged, non-corrosive, high impact polypropylene
    • Snap-on cover provides watertight seal
    • "Universal" cut-to-fit (see diagram) graduated diameter cable entries accommodate wide cable range
    • Multiple position connector strips with "captive" screw compression wire terminals installed - meets ABYC standards
    • Multiple knockouts provided for conduit access (in addition to cable entries)
    • IEC Waterproof Rating: IP54 - "Water projected in jets against the enclosure from any direction shall have no harmful effects."

    Specifications

    Model PX-1 PX-2 PX-3
    Number of Connector Strips 1 2 2
    Positions per Strip 6 6 9
    Max Wire Gauge 16 16 16
    Number of Cable Entry Ports 5 7 7
    Number of Cable Entries Installed 3 7 7
    Spare Cable Entries Provided 2 0 0
    Cable Diameter Range (inches) .14-.81 .14-.81 .14-1.0
    Cable Diameter Range (mm) 3.5-20.5 3.5-20.5 3.5-25.5
    Box Size Inches 2.95 x 2.95 x 1.66 3.35 in x 3.35 x 1.66 4.45 x 4.45 x 2.29
    Box Size Centimeters 7.5 x 7.5 x 4.2 8.5 x 8.5 x 4.2 11.3 x 11.3 x 5.8
