Newmar TS2X4 Terminal Strip

Description

Terminal Strips

  • Use as a common negative/neutral bus for AC or DC systems. Dual terminal strips in 4 or 8 screw positions on 3/4? centers are secured to a high density insulated base. All hardware, bus material and fasteners are nickel-plated brass.
  • #8 screws accommodate various size ring terminals and each terminal strip is rated for 100 amps.

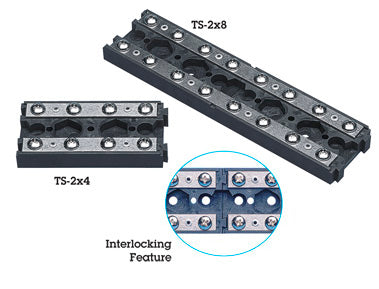

  • Interlocking bases allow use of multiple terminal strips and bus bars (described below) to produce secure and neat wiring assemblies. The terminal strip bases have provisions for either #8 or #10 mounting screws, and no conductive parts in the base are exposed to the mounting surface.
Model Total # of Base Terminals Size
8 TS-2x8 6 1/16 in x 1 1/2 in

Newmar TS2X4 Terminal Strip

Product form

$39.68

    Description

    Terminal Strips

    • Use as a common negative/neutral bus for AC or DC systems. Dual terminal strips in 4 or 8 screw positions on 3/4? centers are secured to a high density insulated base. All hardware, bus material and fasteners are nickel-plated brass.
    • #8 screws accommodate various size ring terminals and each terminal strip is rated for 100 amps.
    • Interlocking bases allow use of multiple terminal strips and bus bars (described below) to produce secure and neat wiring assemblies. The terminal strip bases have provisions for either #8 or #10 mounting screws, and no conductive parts in the base are exposed to the mounting surface.
    Model Total # of Base Terminals Size
    8 TS-2x8 6 1/16 in x 1 1/2 in
