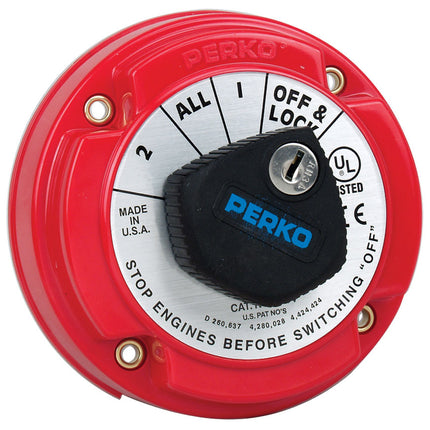

Perko 8504DP Medium Duty Battery Selector Switch w/Alternator Field Disconnect & Key Lock [8504DP]

Description

Medium Duty Battery Selector Switches

  • Diameter: 5-1/4"
  • Depth: 2-5/8"
  • Polycarbonate Body with Brass Terminals
  • Ignition Protected
  • For use with 6 to 32 Volt Marine Electrical Systems
  • Capacity - 250 AMPS Continuous, 360 AMPS 5 Mins. Intermittent
  • Terminal Stud Size: 5/16"
  • When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned "OFF" with the engine running.

Specifications:

  • AFD: Yes
  • Lockable: Yes
  • Positions: 2
  • Continuous Amperage: 250a
  • Box Dimensions: 3"H x 6"W x 8"L WT: 0.95 lbs
  • UPC: 085226560026

Quick Guide (pdf)

Perko 8504DP Medium Duty Battery Selector Switch w/Alternator Field Disconnect & Key Lock [8504DP]

Product form

$89.99

    Description

    Medium Duty Battery Selector Switches

    • Diameter: 5-1/4"
    • Depth: 2-5/8"
    • Polycarbonate Body with Brass Terminals
    • Ignition Protected
    • For use with 6 to 32 Volt Marine Electrical Systems
    • Capacity - 250 AMPS Continuous, 360 AMPS 5 Mins. Intermittent
    • Terminal Stud Size: 5/16"
    • When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned "OFF" with the engine running.

    Specifications:

    • AFD: Yes
    • Lockable: Yes
    • Positions: 2
    • Continuous Amperage: 250a
    • Box Dimensions: 3"H x 6"W x 8"L WT: 0.95 lbs
    • UPC: 085226560026

    Quick Guide (pdf)
