Description

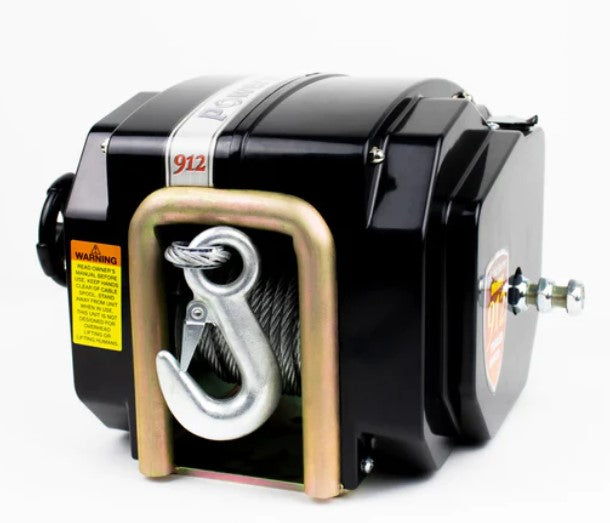

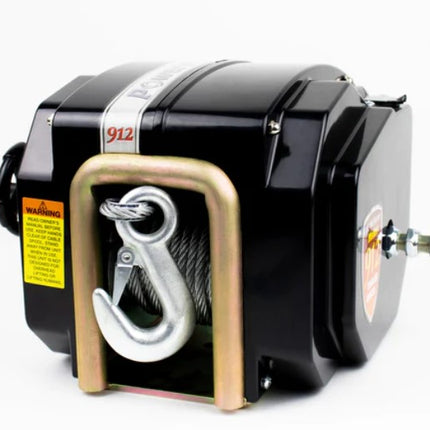

Model 912 Max. boat weight of 11,500 lbs
Model: P77912
- 60 amp standard wiring harness
- Pulley block for double line applications
- Max. boat weight of 11,500 lbs
- 4000 lb vertical lift capacity (single line) or double pull/line capacity 7500 lbs. (Not to be considered or used as a hoist)
The 912 Trailer Winch is well established with a solid, reliable reputation. It features smooth power-in/free-wheel out action. You can use a pulley or block at the bow eye to double your pulling power. You can get more strength out of your trailer winch.
SpecificationsMax. Boat Weight| 1500 lbs |
| Line Speed |
8 feet per minute |
| Vertical Lift Capacity |
4000 lbs |
| Remote Control |
No |
| Light |
No |
| Double Line Capacity |
7500 lbs |
| Gear Ratio |
400:1 |
| Circuit Breaker |
60 amp |
| Unit Weight |
35 lbs |
| Depth |
10 in |
| Width |
10 in |
| Height |
8 in |
| Cable Length and Diameter |
40 feet x7/32 in |
| Input Voltage |
12 Volt |
What's in the Box:
- Model 912 Trailer Winch
- 40 feet x 7/32 in Stainless Steel Universal Cable
- Manual Hand Crank
- Pulley Block
- 60amp Standard Wiring Harness
