Description

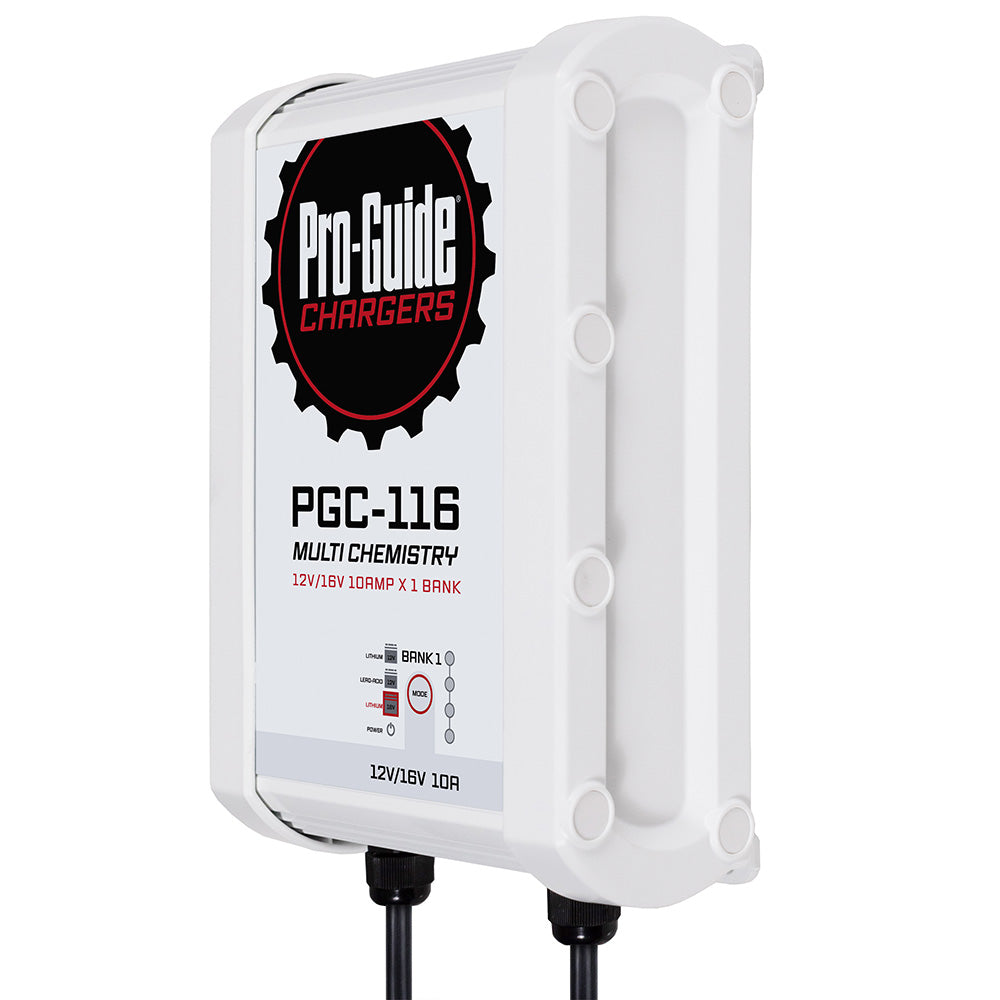

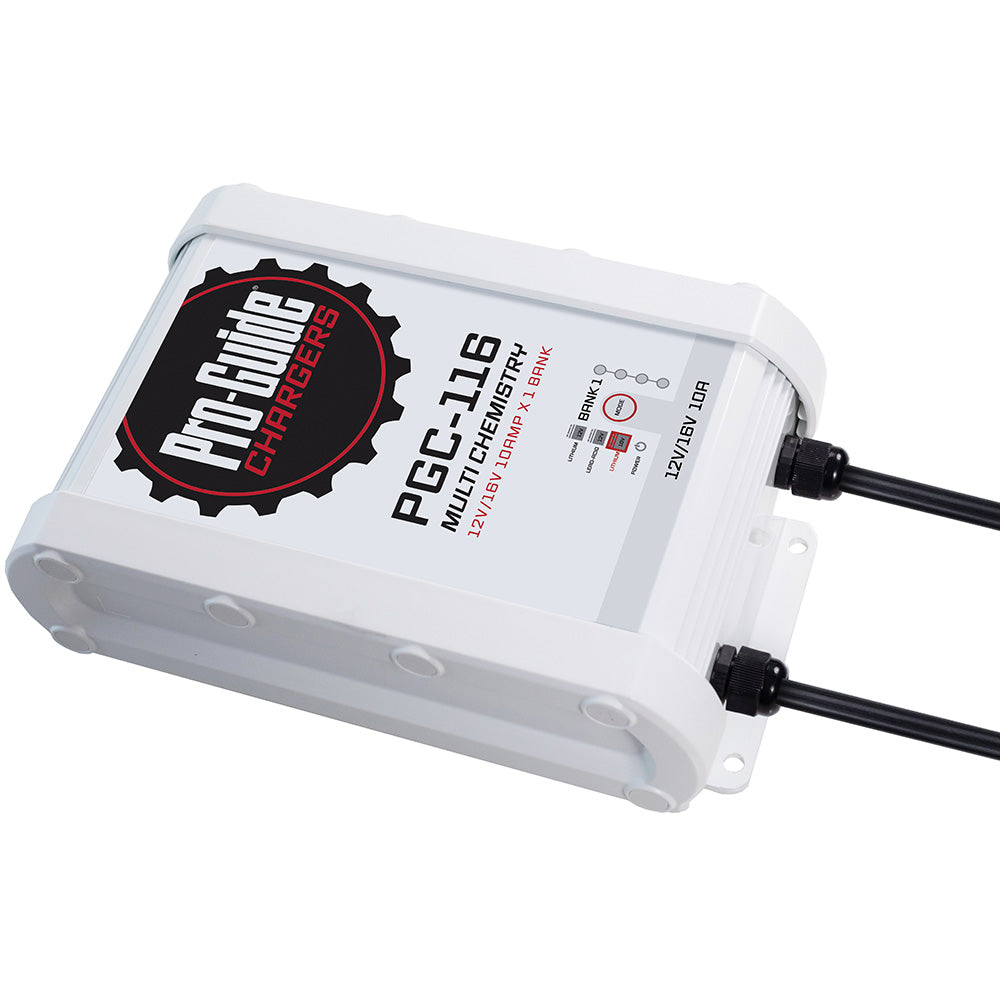

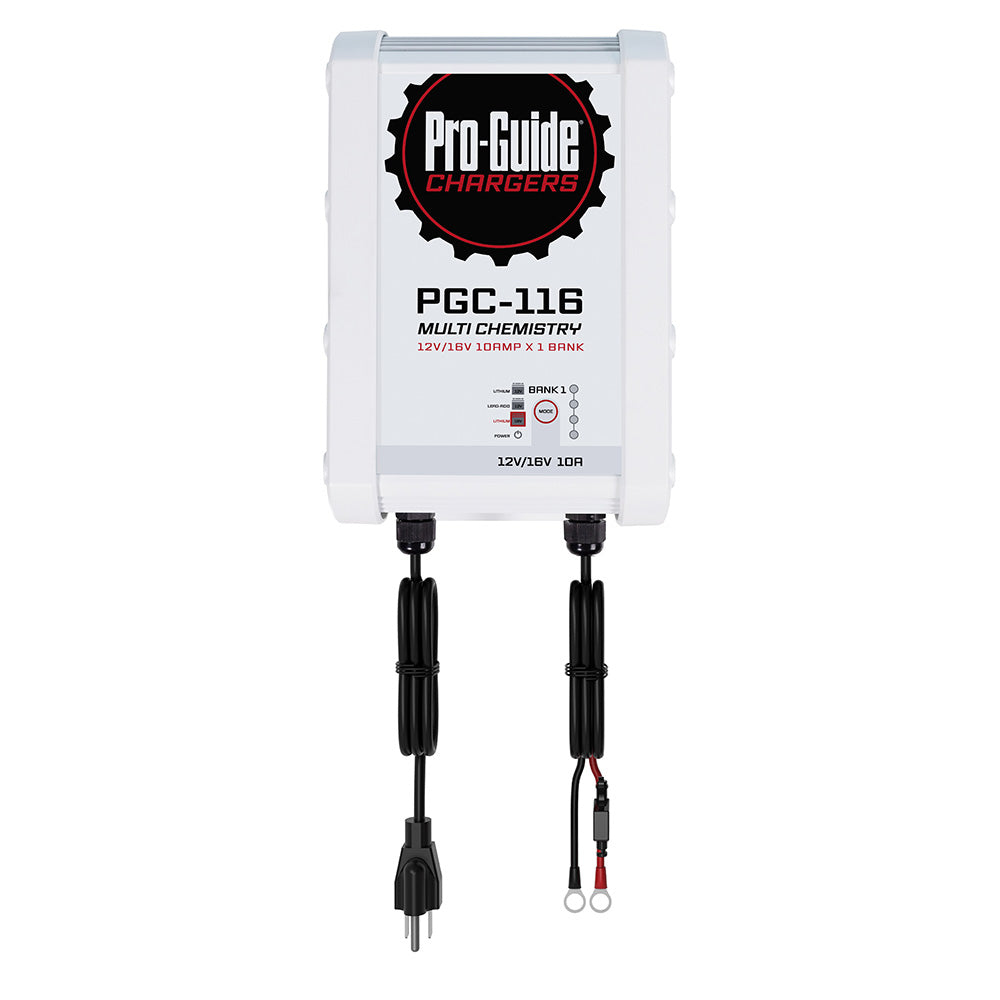

1 Bank On-Board Battery Charger - 12V/16V - 10-Amp
The Pro-Guide PGC-116 is a 12V AGM / Lithium or 16V Lithium on-board battery charger.
Select one of two charge profiles
Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.
The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each battery's state of charge on a specific timeline, ensuring that you'll be fully charged for your next adventure.
With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.
Protection:
- Output Over-Voltage
- Output Over Current
- Output Short Circuit
- Output Reverse Polarity
- Over Temperature
Input:
- Input Voltage: AC 110-120V
- Frequency: 60Hz
- Input Current: <6A
Specifications:
- Battery Type: 12V AGM / Lithium & 16V Lithium
- Output Voltage: DC 12V/16V x 1
- Max Output Voltage: 14.3-14.7 for 12V AGM Battery, 14.4-14.7 for 12V Lithium Battery, & 18-18.3 for 16V Lithium Battery
- Output Current: 10A for 12/16V Bank
- Length: 6.02"
- Width: 9.96"
- Height: 3.86"
- Weight: 9.9 lbs
- IP Rating: 68
Brochure (pdf)
