Description

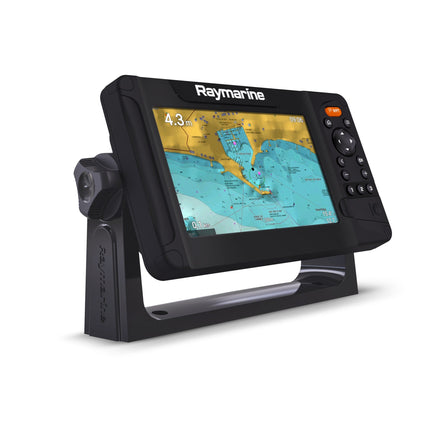

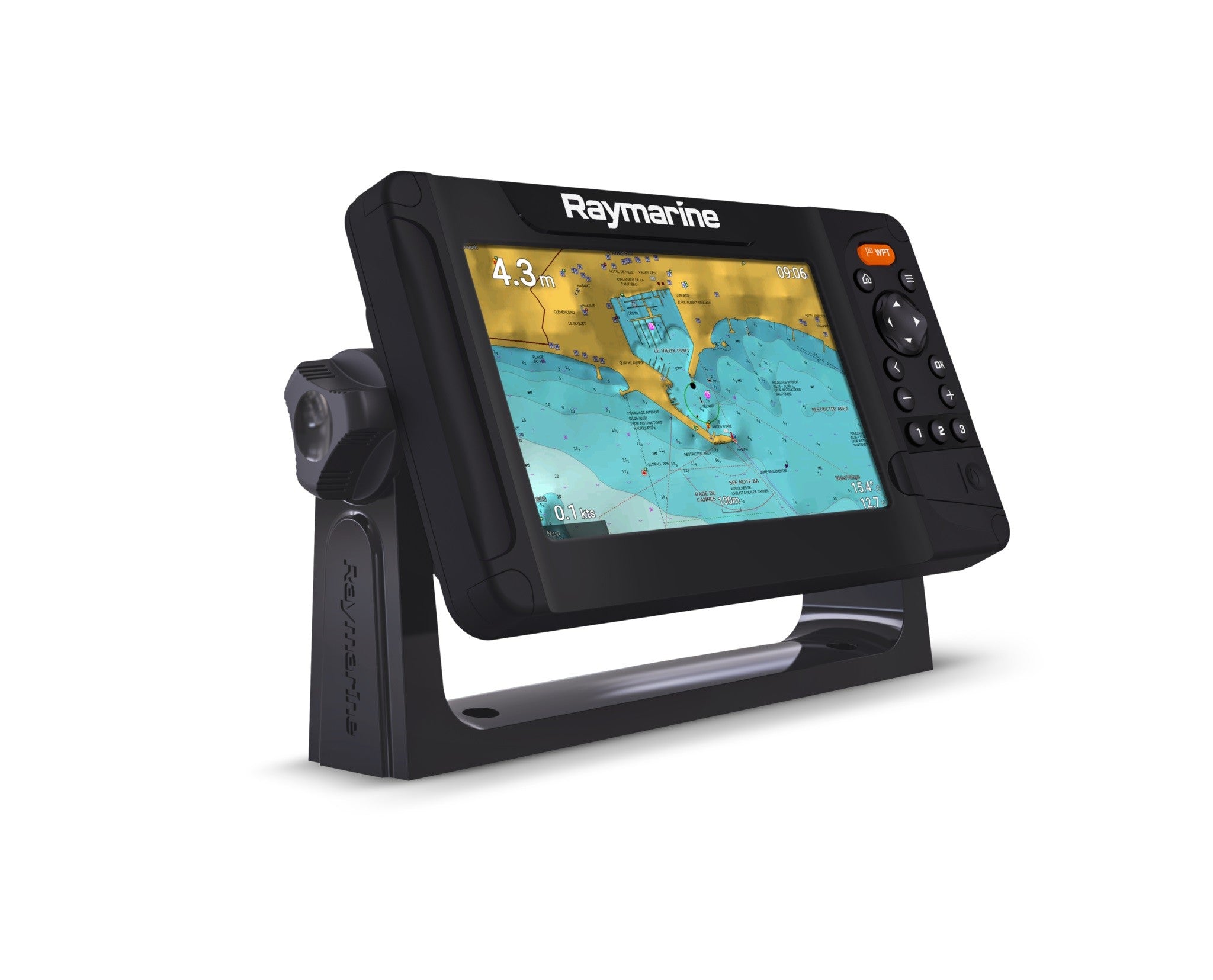

Raymarine Element 7S 7.0 in MFD, No Chart
Model: E70531
- Support for Raymarine LightHouseTM charts, Navionics, and C-MAP
- Safely navigate busy waterways with an optional QuantumTM wireless radar and AIS receiver
- Built-in High CHIRP sonar for depth and bottom contour imaging
- Map uncharted areas with Raymarine RealBathyTM personal sonar mapping
- Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF
- From sailing to power cruising to fishing, the LightHouse Sport OS is easy to customize to your type of boating
- An oversized waypoint key for quick and easy marking of your favorite locations
- Three user-programmable quick keys to access your favorite pages with one button push
- Live menus let you customize charts while seeing the navigation display change in real time
- Category-leading quad-core processor delivers fast chart redraw and responsive performance
- Fast and accurate 10hz GPS/GNSS sensor
- Rugged design and backed by Raymarine's three-year warranty (product registration required)
The Element S series of navigation displays gives you the freedom to enjoy the open waters-Select your destination and let Element's fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element's all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color. Element's simple and straightforward LightHouse Sport operating system lets you navigate with confidence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.
SpecificationsDisplay Size| 7.0 Optically Bonded LCD |
| Display Resolution |
800 x 480 WVGA |
| W x H x D (mm) |
(9.5 x 5.3 x 2.4 inches) |
| Product Weight (lbs) |
3.0 |
| Voltage |
12V DC (8V to 16V DC) |
| Power Consumption (max 12V DC) |
15 Watts |
| GNSS / GPS |
Built-in GPS/GLONASS |
| Sonar Type (Built-in) |
Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers |
| Sonar Depth |
CHIRP Sonar = 274m (900 feet) |
| Radar |
Quantum wireless CHIRP compatible Wi-Fi only connection |
| Doppler Radar |
N/A |
| MARPA |
N/A |
| NMEA2000 |
1 x NMEA2000 port (DeviceNet microC) |
| Supported NMEA2000 Networking |
INPUT: NMEA2000 Compatible Engines (Max 2) - NMEA2000 Compatible Tank Sensors (Max 4) - Heading Sensor (for Chart Stabilization) |
| SeaTalkng |
Requires A06045 DeviceNet female (F) adapter cable - 400mm |
| Wi-Fi |
WiFi - 802.11 b / g / n |
| Cartography Optional |
Raymarine LightHouse NC2 |
