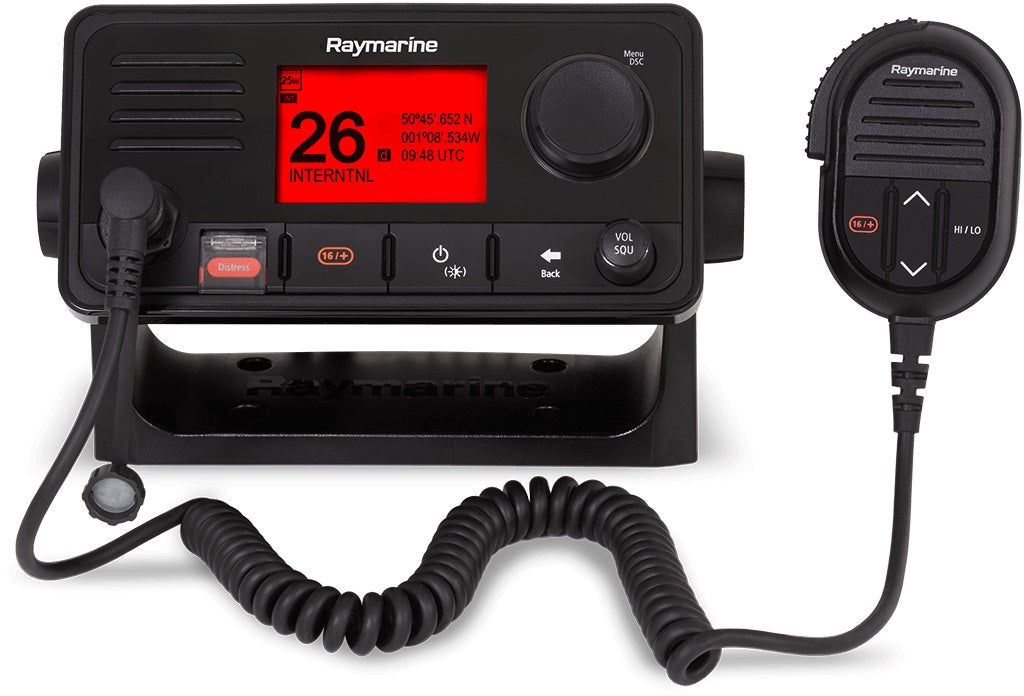

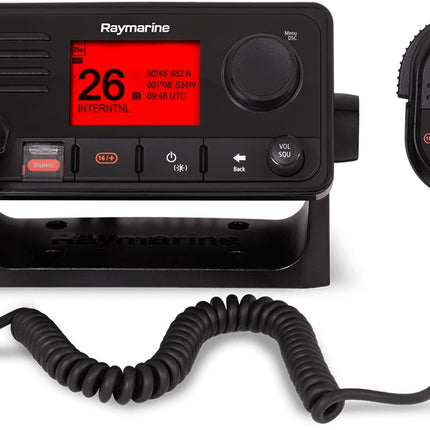

Raymarine's Ray73 radio is communications central for your boat with built-in VHF, AIS receiver and loudhailer capabilities. Built on our full-sized marine radio chassis, the Ray73 comes with oversized controls and a big screen for easy operation offshore. The Ray73 also supports optional wired or wireless RayMic controllers for true multi-station control and intercom capability. When connected to an optional hailing horn, the Ray73 can generate automatic fog signals and work as a public address announcement system.
Operating Temperature| -20oC (-4oF) to +60oC (140oF) |
| Storage Temperature |
-25oC (-13oF) to +70oC (158oF) |
| Relative Humidity |
95% |
| Water Proofing |
IPx6 & IPx7 |
| Connections |
1x NMEA 0183, 1x SeaTalkng (R) / NMEA 2000, 1x Front Fistmic connection, 1x Rear connection for 2nd station, 1x Audio (RCA), 1x GNSS (GPS) antenna (TNC) |
| Channels |
All available US, International and Canadian VHF marine bands |
| Power |
| Nominal Supply Voltage |
12 V dc (Reverse polarity and over voltage protection) |
| Operating Voltage Range |
9 Vdc to 16 Vdc |
| Current Consumption |
Less than 6 A at high power (13.6 V)
Standby: 600 mA
Receive: 2 A
Loud hailer: 3A (8 Ohms) / 6A(4 Ohms)
|
| Transmitter |
| Channels |
All available US, International and Canadian VHF marine bands |
| Frequency Range |
156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Frequency Stability |
+/- 1.5 ppm |
| Channel Spacing |
12.5 kHz |
| Power Output |
Low power setting - 1 W High power setting - 25 W |
| Antenna Impedance |
50 Ohms (typical) |
| Receiver |
| Receiver Type |
Double conversion super heterodyne |
| Channels |
All available US, International and Canadian VHF marine bands |
| Sensitivity |
Better than 1 microvolt EMF @20dB SINAD |
| Squelch Sensitivity |
Less than -2 dBμ EMF |
| Hum and Noise |
Better than -40 dB |
| Audio Distortion |
Less than 10% |
| Speaker |
| Base Station Speaker Power Output |
2.5W (8 Ohms) |
| Fistmic Speaker Power |
1W (16 Ohms) |
| External Speaker Power |
5W (8 Ohms) |
| Handset Speaker Power Output |
1W (16 Ohms) |
| Hailer Speaker Power Output |
25W (4 Ohms) / 12W (8 Ohms) |
| GNSS (GPS) |
| Channels |
72 |
| Receiver IC Sensitivity |
-167 dBm (Tracking) / -148 dBm (Acquisition) |
| SBAS Compatibility |
WAAS, EGNOS, MSAS |
| Special Features |
Active Jamming and Interference Reduction |
| Signal Acquisition |
Automatic |
| Almanac Update |
Automatic |
| Geodetic Datum |
WGS-84 (alternatives available through Raymarine MFD) |
| Refresh Rate |
10 Hz (10 times per second Concurrent GNSS) |
| Position Accuracy |
Without SBAS: <= 15 metres 95% of the time, With SBAS: <= 5 metres 95% of the time |
| AIS |
| Class Type |
AIS receiver only |
| Other |
| Dimensions |
7.83W x 3.88"H x 5.63"D |
