Description

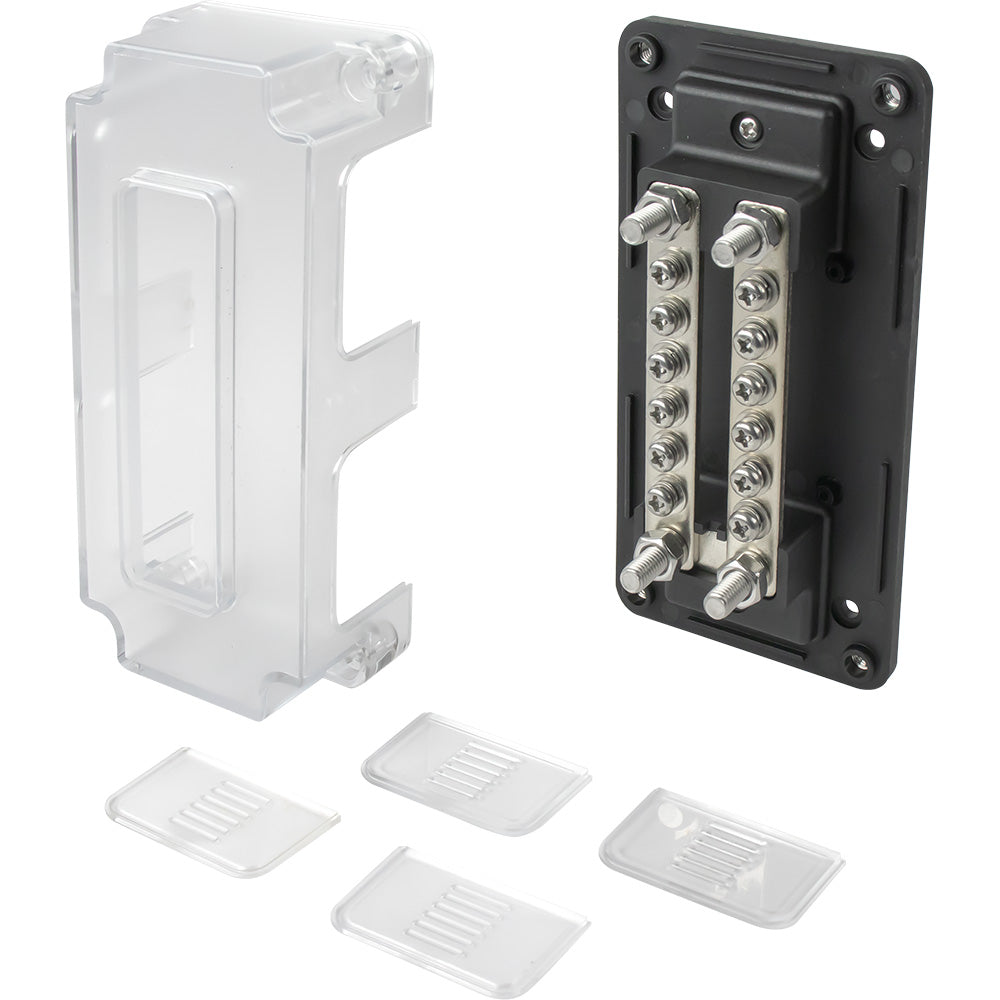

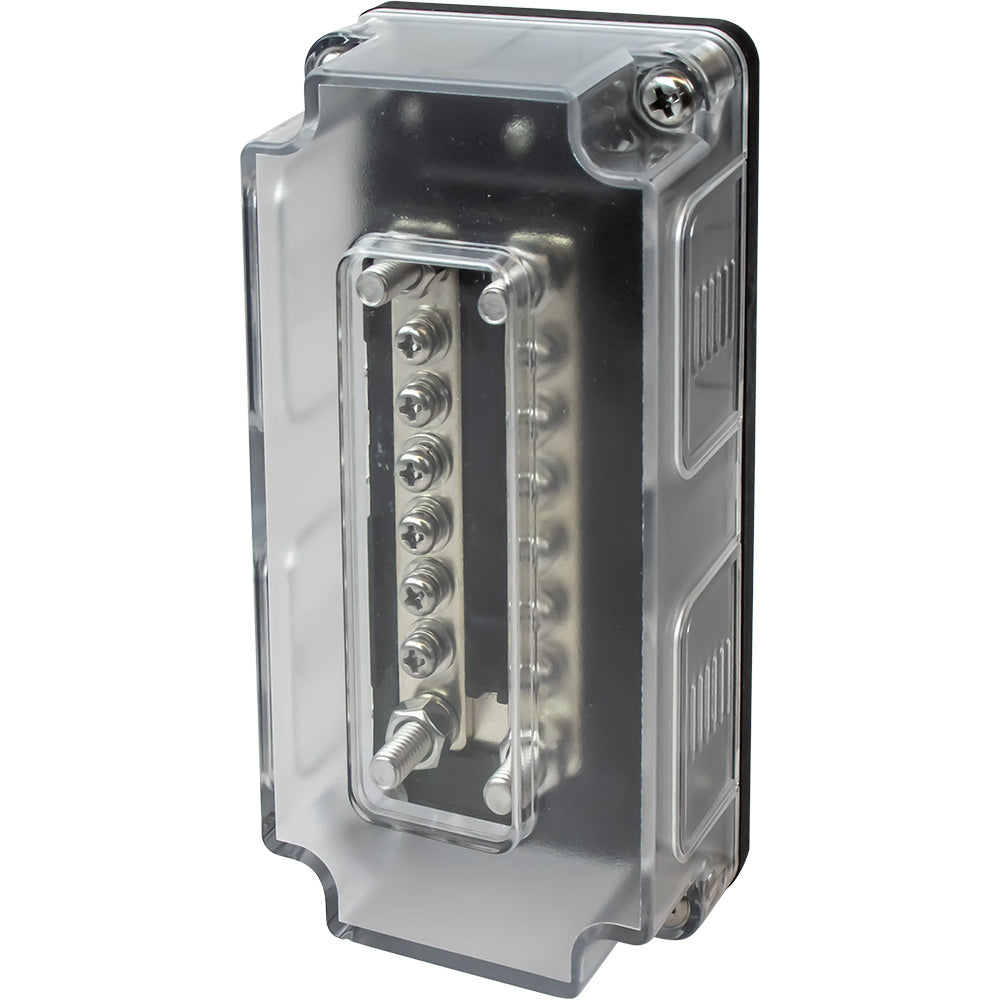

Dual Buss Bar with Cover - 12 Terminals
This dual bus bar is designed for DC positive or negative distribution on one block or AC neutral and safety ground collection on one block. Constructed of corrosion-resistant tin-plated Copper and ABS with a polycarbonate cover.
Features:
- Includes two 1/4"-20 stainless steel stud terminals and six #8-32 stainless steel screw terminals per buss
- Installs with four #8 FH fasteners (included)
- 48VDC, 150A per buss; 300VAC, 150A per buss
- CE and RoHS compliant
Specifications:
- Terminals: 12
- Length (inch): 5-1/2"
- Width (inch): 2-3/4"
- Depth (inch): 1-11/16"
- Max. Amps: 150
- Fastener: #8 FH
- Weight: 0.59 lb.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
