Description

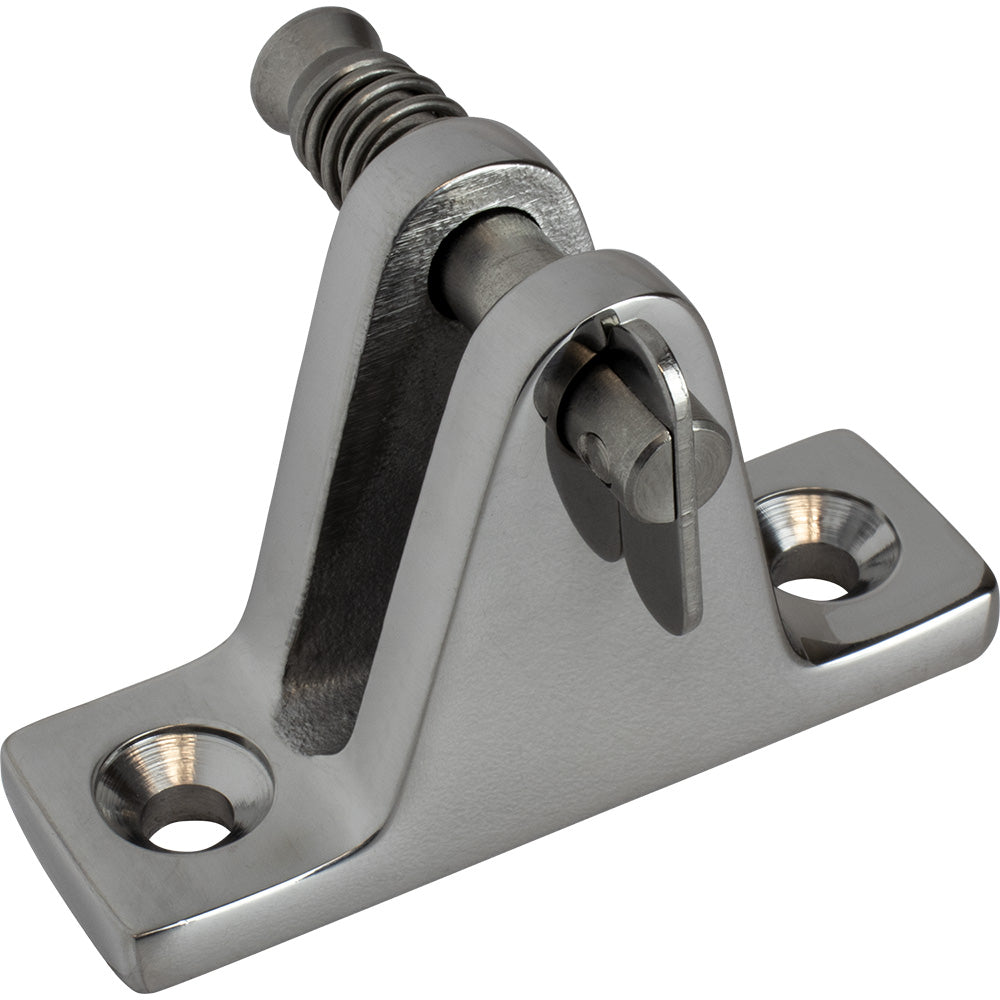

Top Mount Hinge Fitting - Investment Cast 316 Stainless Steel - 90 Degree
These Top Mount Hinge Fittings are designed to mount horizontally and attach an eye end in Bimini top applications. Concave Hinges are designed to rail mount on 1” tubing. Angled Hinges are used for mounting items on slanted surfaces like sloped gunwales. 180° Adjustable Hinge allows universal mounting at almost any angle, including vertical mounting. Removable Pin Deck Hinges feature a spring-loaded quick-release pin for easy top removal. 1/4” or 5/16” pin size. Constructed of corrosion-resistant investment-cast 316 stainless steel. Installs with two FH fasteners (not included).
Specifications:
- 90° Deck Hinge (Removable Pin)
- Base: 3/4" x 2-1/4"
- Pin Size: 1/4"
- Fastener: #10 FH
Specifications:
- Material: Stainless Steel
