Seaview's innovative new modular electronic mounts feature a unique universal plate design that provides a cleaner look and greater installation flexibility. A pre-drilled anodized aluminum plate is incased inside the UV stable white ABS plastic. There are dimple holes on the top surface of the top plate match up with a drill template allowing you to precisely drill the appropriate holes for your specific radar. The end result is a nice clean look with no unwanted visible holes.
| Closed Dome Radar, Small Satdomes (16 in or smaller) & Cameras
|
| PMF-57-M1 | 5 in Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMF-107-M1 | 10 in Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-57-M1 | 5 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-107-M1 | 10 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-167-M1 | 16 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-247-M1 | 24 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-367-M1 | 36 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| AM5-M1 | 5 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required |
| AM12-M1 | 12 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required |
| AM18-M1 | 18 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required |
| Large Satdomes (18 in - 24 in)
|
| PMA-57-M1 | 5 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-1210-M2 | 12 in Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required |
| PMA-1810-M2 | 18 in Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required |
| PMA-DM1-M2 | 12.5 in Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes / Top plate required |
| PMA-DM2-M2 | 22.5 in Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes / Top plate required |
| |
| Step 2
| Choose Top Plate
|
| ADA-R1 | Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide) |
| Satdome
|
| ADA-S1 | 1 Modular plate for KVH M1/M2/M3 , Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14
|

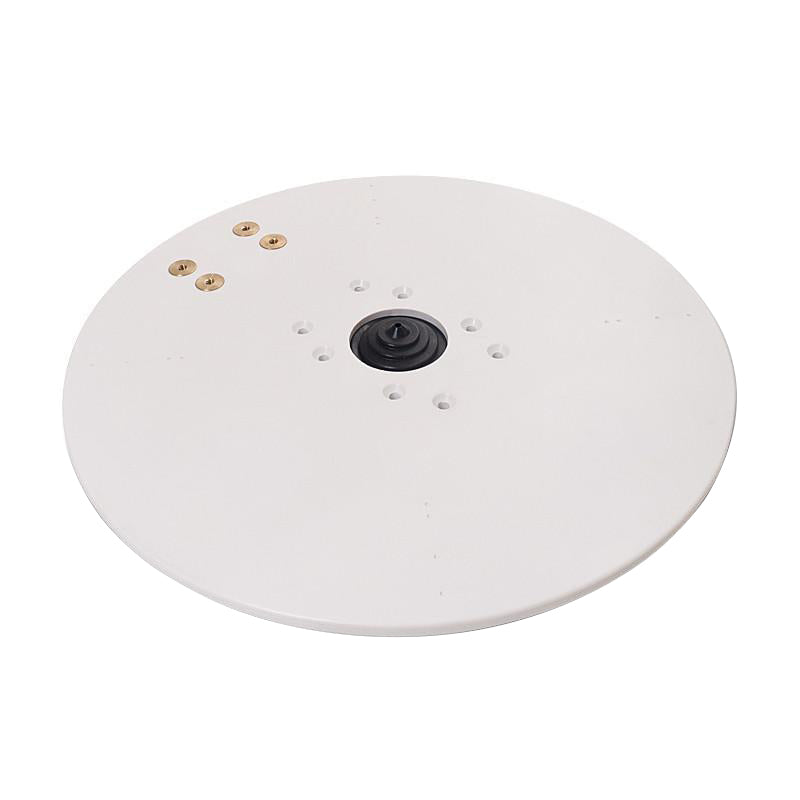

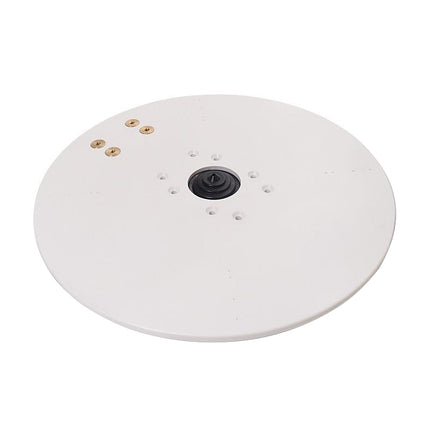

| ADA-S2 | Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24 |
| ADA-S3 | 2 Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD
|
| ADA-S4 | Modular plate for ALL FB150 & FB250 domes |
| ADA-F1 | Modular plate for FLIR M or Ray T series thermal cameras |
Step 3 | Choose Optional Accessories
| | LTB-R | 1 1/4 in Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below
|
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| (LTB TOP) Standard 1-14 thread for GPS or similar
|
| LTB-U1A | (LTB TOP) Perko 1197 light with 7 feet of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length.
|
| LTBA-7800 | (LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included)
|
| PM-114LT-DLX | Floodlight kit for 1 1/4 in. dia. LTB (includes 4 in X 6 in 55-watt 14V quartz halogen floodlight & hardware) |
| PM-U2A | Light bar adapter to mount a light and 2 GPS (electronics not included) |
| PM-W4-7 | 4 degree wedge/ for 7x7 radar mount base plate |
| Hinge Adapters for base plate
|
| PM-H8 | Hinge adapter/ for 8x8 base plate/ (fits most 24 -36 in. tall Radar Mounts) |
