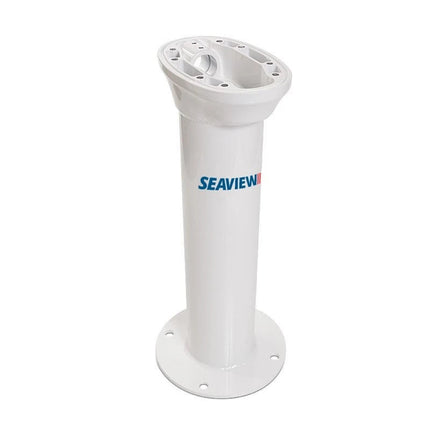

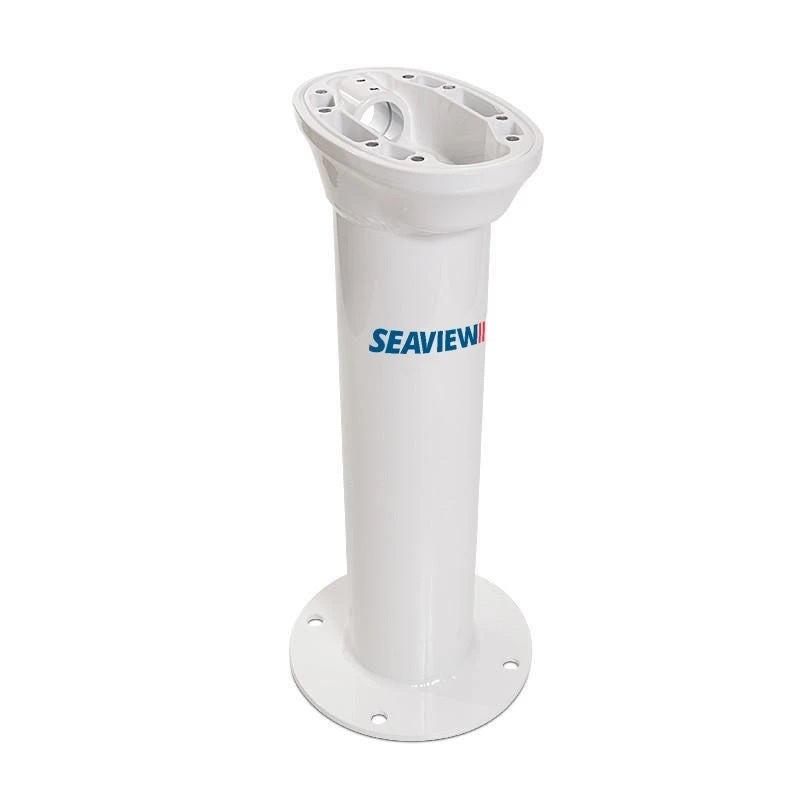

The 18 in tall Seaview vertical mount is for Closed Dome Radars and small Satdomes (16 in diameter or smaller). The oval hollow mast section allows for easy cable management. The small 8 in round base plate foot print design is a great solution for limited space. This modular mount is light bar compatible. Numerous accessories are also available for this mount such as wedges, spreaders, lightbars and floodlights. *Please note that a Top Plate is required (sold separately)*
| Closed Dome Radar, Small Satdomes (16 in or smaller) & Cameras
|
| PMF-57-M1 | 5 in Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMF-107-M1 | 10 in Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-57-M1 | 5 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-107-M1 | 10 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-167-M1 | 16 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-247-M1 | 24 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-367-M1 | 36 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| AM5-M1 | 5 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required |
| AM12-M1 | 12 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required |
| AM18-M1 | 18 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required |
| Large Satdomes (18 in - 24 in)
|
| PMA-57-M1 | 5 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-1210-M2 | 12 in Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required |
| PMA-1810-M2 | 18 in Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required |
| PMA-DM1-M2 | 12.5 in Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes / Top plate required |
| PMA-DM2-M2 | 22.5 in Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes / Top plate required |
| |
| Step 2
| Choose Top Plate
|
| ADA-R1 | Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide) |
| Satdome
|
| ADA-S1 | 1 Modular plate for KVH M1/M2/M3 , Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14
|
| ADA-S2 | Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24 |
| ADA-S3 | 2 Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD
|
| ADA-S4 | Modular plate for ALL FB150 & FB250 domes |
| ADA-F1 | Modular plate for FLIR M or Ray T series thermal cameras |
Step 3 | Choose Optional Accessories
| | LTB-R | 1 1/4 in Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below
|
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| (LTB TOP) Standard 1-14 thread for GPS or similar
|
| LTB-U1A | (LTB TOP) Perko 1197 light with 7 feet of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length.
|
| LTBA-7800 | (LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included)
|
| PM-114LT-DLX | Floodlight kit for 1 1/4 in. dia. LTB (includes 4 in X 6 in 55-watt 14V quartz halogen floodlight & hardware) |
| PM-U2A | Light bar adapter to mount a light and 2 GPS (electronics not included) |
| PM-W4-7 | 4 degree wedge/ for 7x7 radar mount base plate |
| Hinge Adapters for base plate
|
| PM-H8 | Hinge adapter/ for 8x8 base plate/ (fits most 24 -36 in. tall Radar Mounts) |
