Description

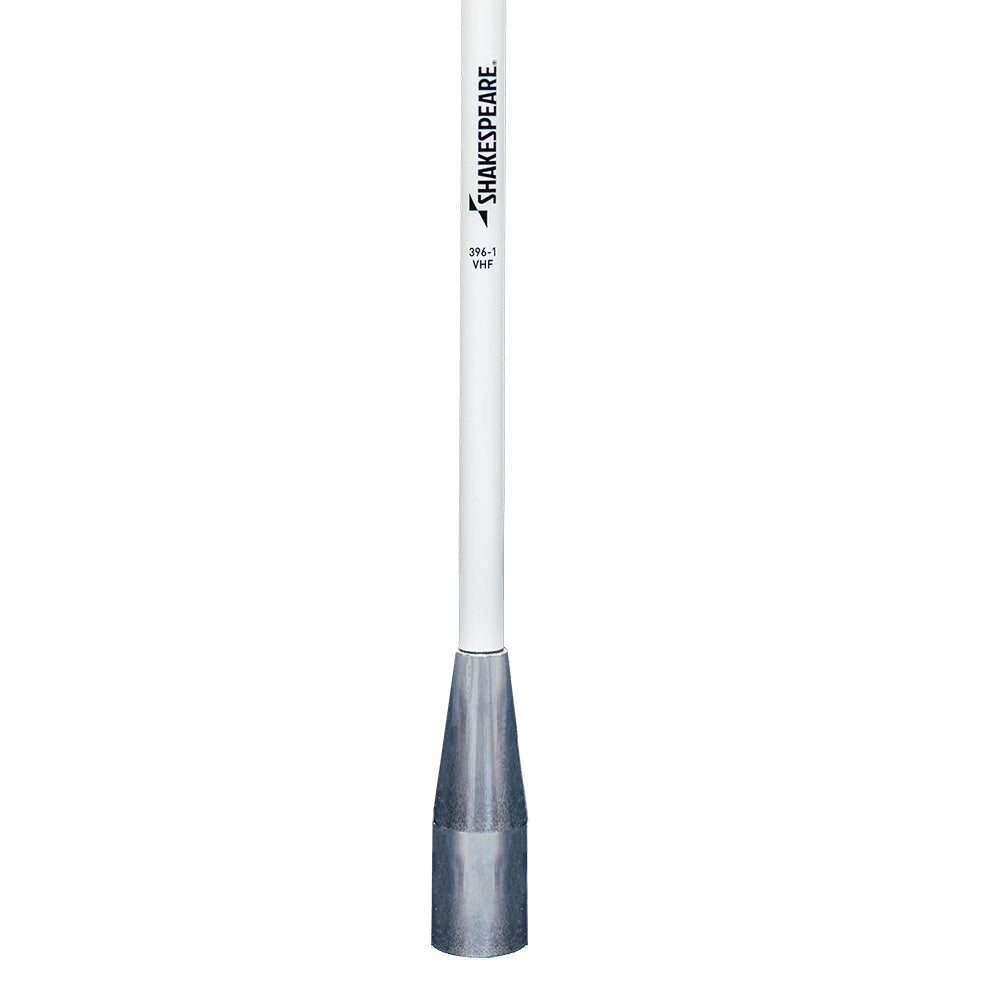

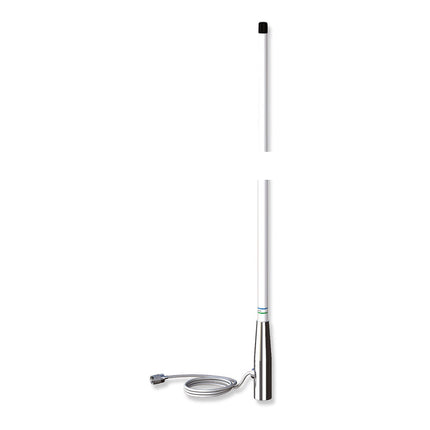

Style 396-1 VHF 3dB
Center-fed 1/2-wave coaxial sleeve
Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Style 4187 Ratchet Mount
- One section
Technical Specifications:
| Frequency: |
VHF Marine band |
| Bandwidth: |
(within 2.0:1 SWR): 5 MHz |
| SWR: |
1.5:1 at 156.8 MHz |
| Impedance |
(Ohms): 50 |
| Gain: |
3 dB |
| Max Input (Watts): |
50 |
| DC Ground: |
NO |
| Termination: |
15' RG-58 cable |
| Height (feet): |
5 |
| Polarization: |
Vertical |
| Radiation pattern: |
Omni-directional |
Specifications:
- Antenna Band: VHF
- Color: White
- Construction: Fiberglass
- Ferrule Type: Chrome Plated
- Length (Inches): 60"
- Box Dimensions: 3"H x 3"W x 63"L WT: 2.9 lbs
- UPC: 719441100018
Quick Guide (pdf)
