Description

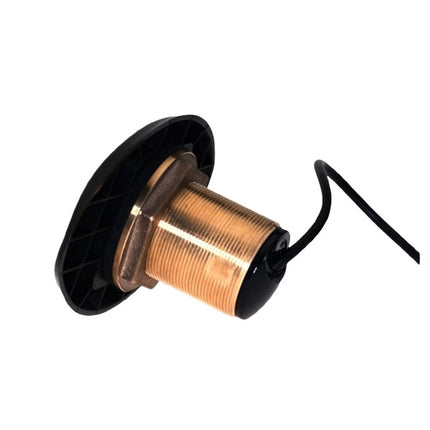

Simrad Bronze HDI XDCR 12deg Tilt 50/200 455/800
Model: 000-13906-001
- Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature
The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.
Specifications
| Frequencies |
50,200,455 and 800 kHz |
| Beam width @ -3db |
50kHz 45° 200kHz 11° 455kHz Fore to aft 2.8°, Port to starboard 56°
800kHz Fore to aft 1.6°, Port to starboard 32° |
| Cable length |
10 meter |
