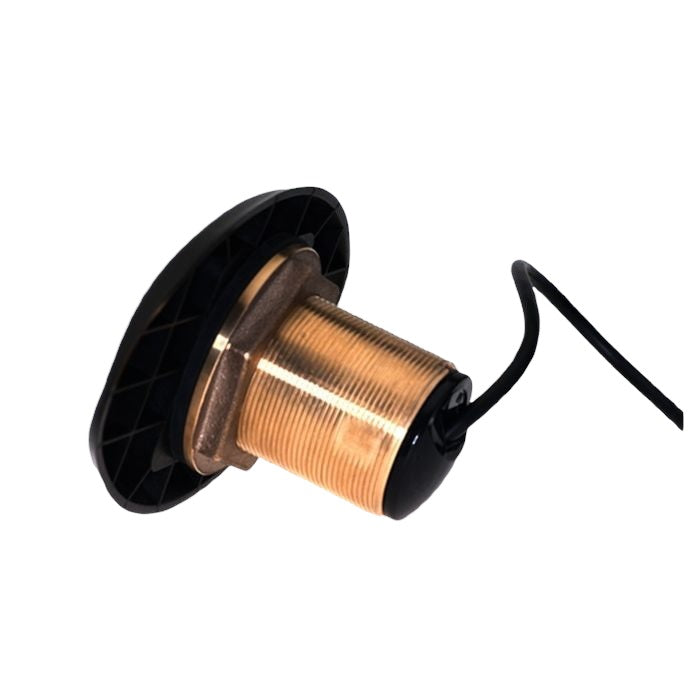

Simrad Bronze HDI Thru Hull 50/200/455/800 Khz 9-PIN 20D

Description

Simrad Bronze HDI XDCR 20deg Tilt 50/200 455/800

Model: 000-13907-001
  • Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature

The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.

Specifications
Frequencies
50,200,455 and 800 kHz
Beam width @ -3db 50kHz 45 deg 200kHz 11 deg 455kHz Fore to aft 2.8 deg, Port to starboard 56 deg
800kHz Fore to aft 1.6 deg, Port to starboard 32 deg
Cable length 10 meter

Simrad Bronze HDI Thru Hull 50/200/455/800 Khz 9-PIN 20D

Product form

$484.01

    Description

    Simrad Bronze HDI XDCR 20deg Tilt 50/200 455/800

    Model: 000-13907-001
    • Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature

    The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.

    Specifications
    Frequencies
    50,200,455 and 800 kHz
    Beam width @ -3db 50kHz 45 deg 200kHz 11 deg 455kHz Fore to aft 2.8 deg, Port to starboard 56 deg
    800kHz Fore to aft 1.6 deg, Port to starboard 32 deg
    Cable length 10 meter
