Description

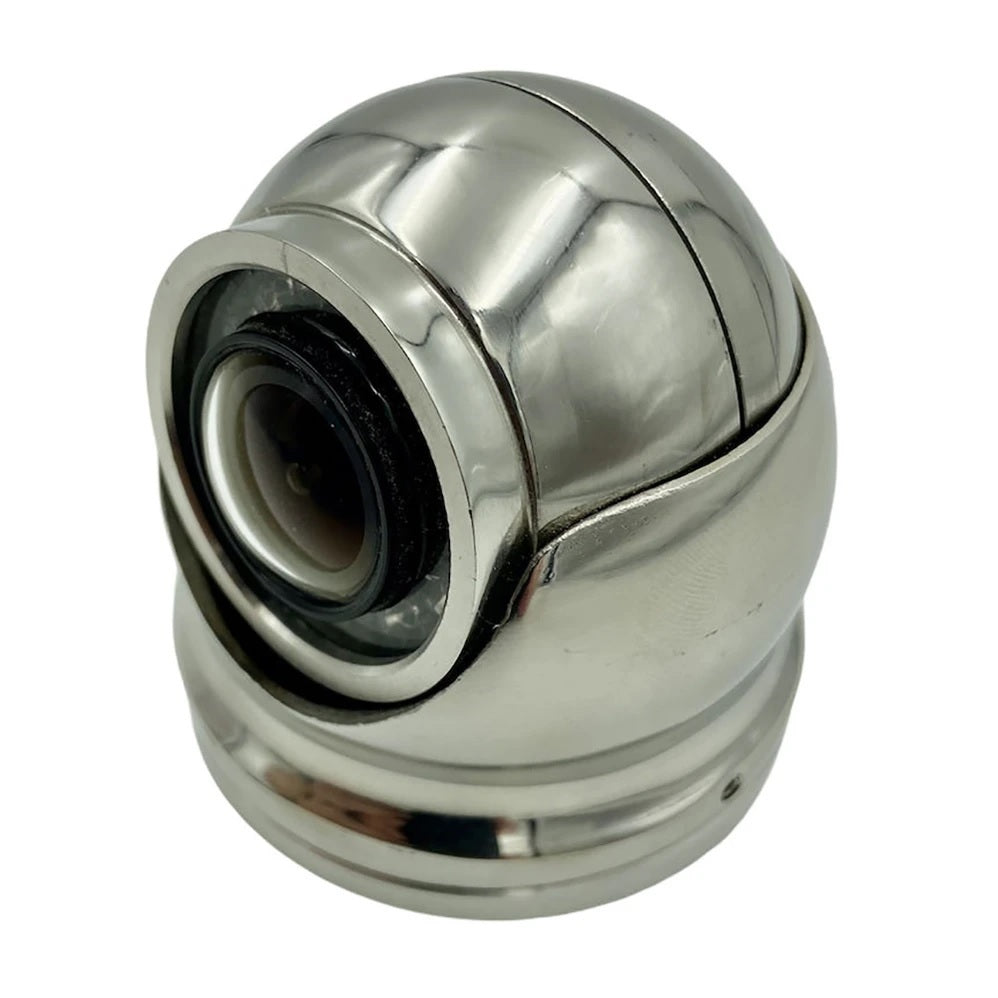

Simrad CAM-1 Marine grade 316 Stainless Steel IP Camera
Model: 000-15876-001
- Pre-configured for use with Simrad, Lowrance and B&G MFDs
- Fast setup on each MFDs
- Rugged 316 Marine Grade Stainless Steel Housing
- 1.8mm 160 deg viewing angle - See the entire deck
- Compatible with NOS 20.2 or later
- Built In IR LED Illumination (10m Range)
- PoE IEEE802.3af Power Option
- Extremely Low Power Consumption
- IP66 Environmental Protection
SpecificationsPoE| IEEE802.3af (RJ45) |
| DC |
12V DC (10-16V) DC 2.1/5.5mm Male CCTV power connector |
| Power Consumption |
| IR LED Off |
1.38W (0.1A at 13.8V DC) |
| IR LED On |
2.76W (0.2A at 13.8V DC) |
| Enviromental |
| Operating temperature |
-30 degC to +60 degC (-22 degF to 140 degF) |
| IP Rating |
IP66 |
| Resolution |
| Main stream |
1080p (1920x1080) |
| Sub Stream |
448p (800x448) |
| Protocol |
RTSP |
| Mechanical |
| Lens |
1.8mm (160 deg Wide Angle) |
| Sensor |
1/4 CMOS |
| Housing |
316 Stainless steel |
| Weight |
420g |
| MFD resolutions capabilities: |
| NSSevo3S |
