Description

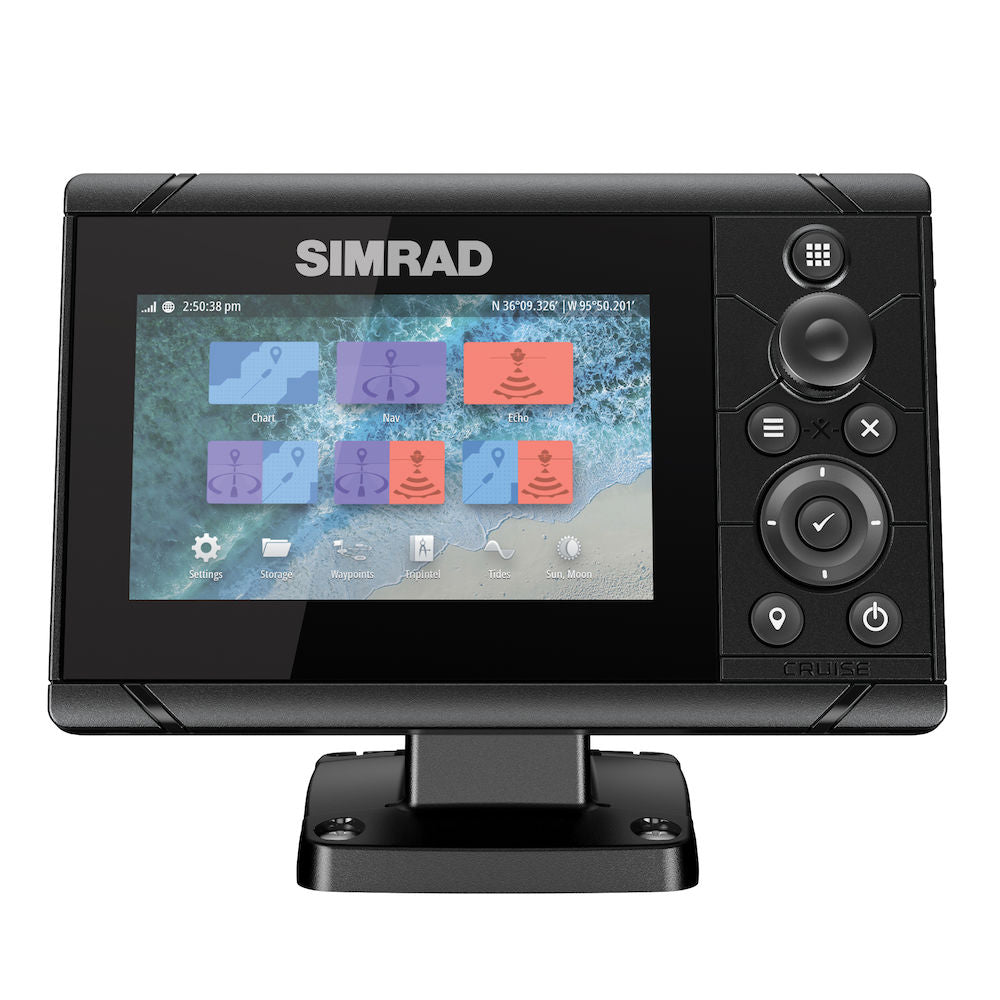

Simrad CRUISE 5 US COASTAL, 83/200 XDCR
Model: 000-14995-001
- Cruise confidently with simple menus plus easy-to-use rotary dial and keypad controls
- Always know where you are and where you are going with pre-loaded US Coastal map or worldwide basemap, plus C-MAP® and Navionics® upgrade options
- Keep important data in view with pre-seleced split screens
- Monitor depth readings, position, battery voltage and other critical boat information
- CHIRP sonar
The new Simrad Cruise is the most intuitive chartplotter available. Taking ease of use to a new level, Simrad Cruise is a chartplotter first and depth finder second — offering reliable GPS navigation at an affordable price. Free from complicated fishing-specific sonar and networking features, with Simrad Cruise you won’t need to master complex electronics -- simply turn on your display and go.
Pre-loaded with U.S. coastal charts and a worldwide basemap, the sunlight viewable display comes with a mounting bracket and transducer. Installation is easy, requiring only a power and sonar cable — eliminating the hassles of networking multiple modules and pulling miles of cable. The user interface is controlled with a rotary dial and keypad, ensuring smooth navigation through menus and provides the vital information needed for a safe and enjoyable time on the water — speed, depth, GPS location, course, battery level and temperature information. The included CHIRP Sonar transducer provides excellent automatic depth tracking for worry-free operation without the need for fine tuning or pre-programming. Pre-selected display views consist of: chart, sonar, navigation, chart/sonar, chart/navigation and sonar/navigation.
Available in 5-, 7- and 9-inch versions, Simrad Cruise can be dash-mounted or bracket-mounted to fit any boat’s helm station. Take your charts to the next level with a wide selection from C-MAP® and Navionics® for increased level of detail and C-MAP® Easy Routing. The display is ideal for installation in open air vessels such as bay, deck, ski and wakeboard boats, bow riders and tenders.
1
Specifications
| Connectivity |
| NMEA 0183 Sentences supported |
No |
| Bluetooth |
None |
| Ethernet |
None |
| N2K PGNs |
N/A |
| NMEA 0183 |
None |
| NMEA 2000 |
None |
| PC Connectivity |
None |
| Video |
None |
| WiFi |
None |
| Display |
| Backlight Color |
White |
| Resolution |
800x480 |
| Screen Brightness |
800 nits |
| Viewing Angles |
70° top/bottom, 70° left/right |
| Electrical |
| Power Consumption, max. |
12.2 W |
| Recommended Fuse Rating |
3A |
| Supply Voltage |
10 - 17 V DC |
| Environment |
| Operating Temperature Range |
-15°C to +55°C (5° F to 131° F) |
| Waterproof rating |
IPX 6 and 7 |
| MFD |
| AIS |
N/A |
| Autopilot |
N/A |
| Cartography included |
C-MAP |
| Digital Switching |
N/A |
| External Storage |
1 Micro SD slot, max. 32GB each. >32 GB format to NTFS |
| GPS |
Internal, 10Hz, WASS, MSAS, EGNOS |
| Multimedia |
N/A |
| Radar (inc. compatibility) |
N/A |
| Sonar (inc. compatibility) |
Integrated CHIRP. 9 Pin push fit connector |
| Weather |
N/A |
| Waypoints, Routes, Tracks |
4000 waypoints, 200 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
| Physical |
| Dimensions (W x H x D) |
184.5 mm x 142.3 x 117.9 mm (7.26" x 5.6" x 4.64") (with bracket) |
| Mounting Type |
Bracket or Panel |
| Other |
| Warranty Period |
2 Years |
| Interface |
Directional cursor button and rotary knob |
What's in the Box:
- Cruise 5
- Power Cable
- Bracket
- Skimmer transducer 83/200kHz
