Description
Simrad NAC-2 Low-current Core Pack
Model: 000-13335-001
UPC: 9420024155639
- Core autopilot system components — just add a drive unit and controller
- Ideal for rudder-steered boats up to 10 metres (35 feet) in length
- Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
- Take control with the Simrad AP44 Autopilot Controller, IS42 display and OP12 keypad, or a networked multifunction display
- Easy setup with automatic tuning and compass calibration
- Plug-and-play connectors for easy installation

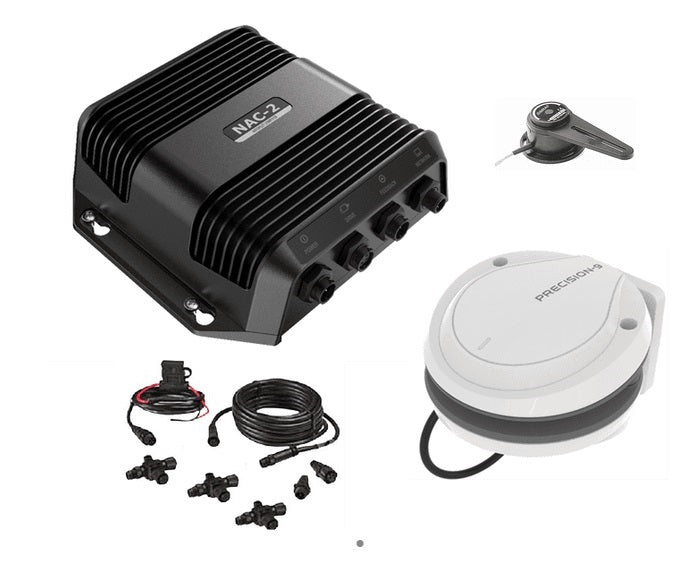

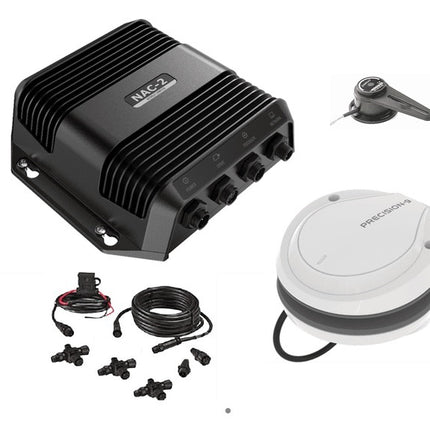

This pack includes the Simrad NAC-2 autopilot computer, RF25N rudder feedback unit, Precision-9 solid-state compass, plus all cabling and connectors required to build an NMEA 2000® network backbone or connect your autopilot system to an existing NMEA 2000® network. This pack is recommended for rudder-steered boats up to 10 metres (35 feet) in length, and is suitable for use with low-current drive pumps including the Simrad RPU80, mechanical drives such as the Simrad SD10, hydraulic linear drives such as the HLD350, and solenoid valves.
Choose from a range of dedicated autopilot controllers, or control your autopilot from your existing Simrad multifunction display. Install extra autopilot stations, ideal for dual-helm vessels, or add the Simrad WR10 wireless remote for instant steering and autopilot control from anywhere on board.
Plug-and-play connectors minimise the need for manual wiring and facilitate easy installation. Industry-standard NMEA 2000® networking offers reliable connectivity to sensors, autopilot controllers, and multifunction displays located anywhere on board. Auto-tuning simplifies setup and ensures optimal steering performance, while automatic compass calibration continuously improves heading accuracy as you travel.
Specifications
| Operating temperature |
-25°C to +55°C (13°F to 131°F) |
| protection |
Splashproof, IPx5 |
| Electrical |
| Power supply |
9-31.2 V DC |
| Load |
140 mA + drive unit load |
| Performance |
Drive: 8 A cont., 16 A for 1 s |
| Interfaces |
| network |
1xMicroC (NMEA2000) |
| Feedback |
Variable voltage/resistive 0-5V |
| Drive output |
To PUMP-1 or HELM-1 |
| Solenoid |
12/24V DC, common, load range 10mA to 10A, off current <1mA |
| Clutch |
12/24V DC, min 10mA, max 3A |
What's in the Box:
- NAC-2 Autopilot Computer
- PRECISION-9 COMPASS
- RF25N NMEA2000
- N2k Backbone Starter Kit
