Description

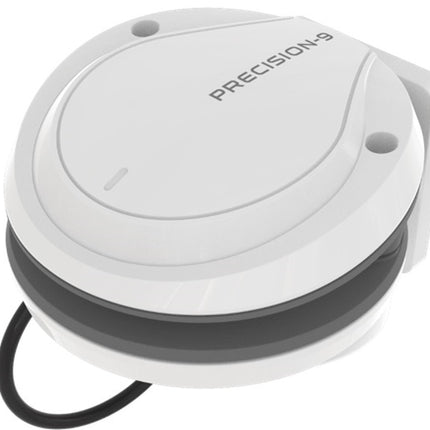

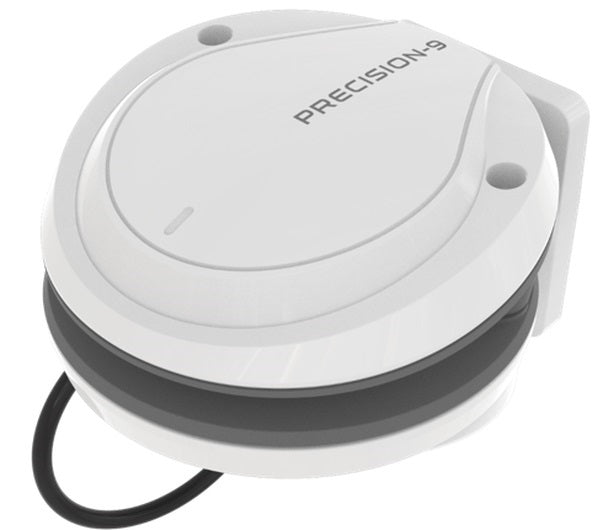

Simrad Precision 9 Compass
Model: 000-12607-001
UPC: 9420024145999
- Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000(R)
- Heading and ROT calculated using sensor data from 9 axes of rotation and motion
- Accurate and reliable solid-state sensor technology
- Heading accuracy of ±2 deg after calibration
- Easily adjustable mounting bracket allows bulkhead or up-mast installation
- IPX7 waterproof. Best in class.
- Simple installation with a single NMEA 2000(R) connection
The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.
SpecificationsSupply and Interface| 8-16 V via NMEA 2000 |
| Power consumption |
0.4 W |
| NMEA 2000 Load Equivalence No. (LEN): |
1 |
| NMEA 2000 ports (input/output): |
1 |
| Calibration |
Automatic (User Prompted) |
| Repeatability |
± 1.0 deg (or better) |
| Roll/Pitch range |
± 45 deg |
| Heading accuracy: |
± 2 deg after calibration |
| Dynamic performance: |
with random excitation of ± 10 deg at max 1 Hz: Heading error <2 deg: with heading step input of 90 deg at a rate of 10 deg/s Heading error 10 sec. after turn <2 deg |
| Environmental protection: |
IPX7 |
| Compass safe distance: |
0.5 m (1.7 feet) |
| Temperature range operation: |
-25 to +65 degC (-13 to +149 degF) |
| Temperature range Storage: |
-30 to +70 degC - (-22 to +158 degF) |
| Dimensions |
H: 36 mm (1.42 in), W & D: 119 mm (4.69 in) |
What's in the Box:
- Precision 9 Compass
- N2K-T-RD - Micro-C T-connector
- N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000(R) cable
